02 C4 QUESTION 2 SOALAN 2 (a) SULIT The truss is subjected to the loading as shown in Figure 2(a); Struktur berikut dike

[answerhappygod]

02 C4 Question 2 Soalan 2 A Sulit The Truss Is Subjected To The Loading As Shown In Figure 2 A Struktur Berikut Dike 1 (26.34 KiB) Viewed 14 times

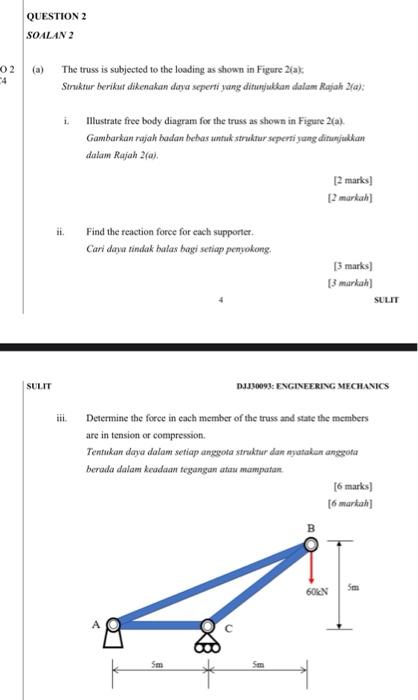

02 C4 QUESTION 2 SOALAN 2 (a) SULIT The truss is subjected to the loading as shown in Figure 2(a); Struktur berikut dikenakan daya seperti yang ditunjukkan dalam Rajah 2(a): i. Illustrate free body diagram for the truss as shown in Figure 2(a). Gambarkan rajah badan bebas untuk struktur seperti yang ditunjukkan dalam Rajah 2(a). ii. Find the reaction force for each supporter. Cari daya tindak balas bagi setiap penyokong 5m [2 marks] [2 markah] [3 marks] [3 markah] Determine the force in each member of the truss and state the members are in tension or compression. Tentukan daya dalam setiap anggota struktur dan nyatakan anggota berada dalam keadaan tegangan atau mampatan. B DJJ30093: ENGINEERING MECHANICS [6 marks] [6 markah] 60KN SULIT 5m
