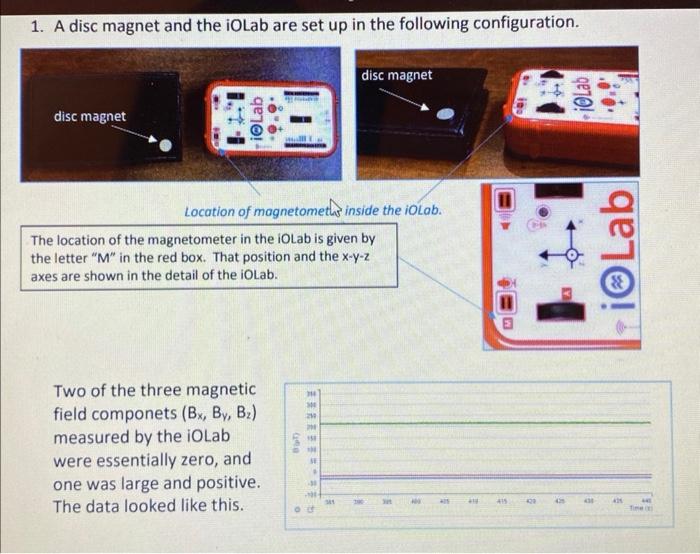

1. A disc magnet and the iOLab are set up in the following configuration. disc magnet -iⒸLab Location of magnetomeths inside the iOLab. The location of the magnetometer in the iOLab is given by the letter "M" in the red box. That position and the x-y-z axes are shown in the detail of the iOLab. Two of the three magnetic field componets (Bx, By, B₂) measured by the iOLab were essentially zero, and one was large and positive. The data looked like this. BUTY **** 20 158 IN SE . -30 - disc magnet 341 415 414 415 429 i@Lab 430 iⒸLab Time

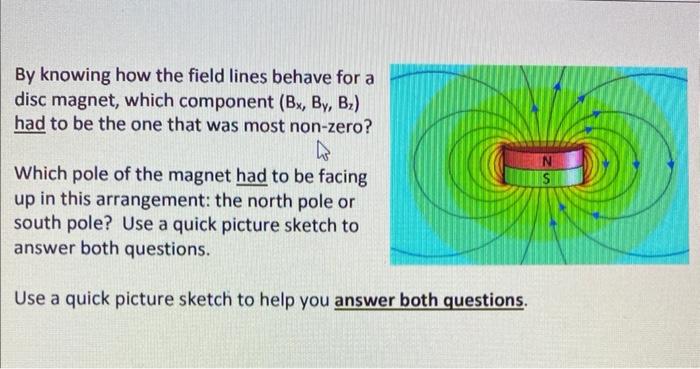

By knowing how the field lines behave for a disc magnet, which component (Bx, By, B₂) had to be the one that was most non-zero? k Which pole of the magnet had to be facing up in this arrangement: the north pole or south pole? Use a quick picture sketch to answer both questions. Use a quick picture sketch to help you answer both questions.
