In the circuit shown in the figure, R₁ = 122, R₂ = 122, R3 = 2002, V₁ = 4 V₁ V₂ = 8 V, and the batteries are both ideal.

Post by answerhappygod »

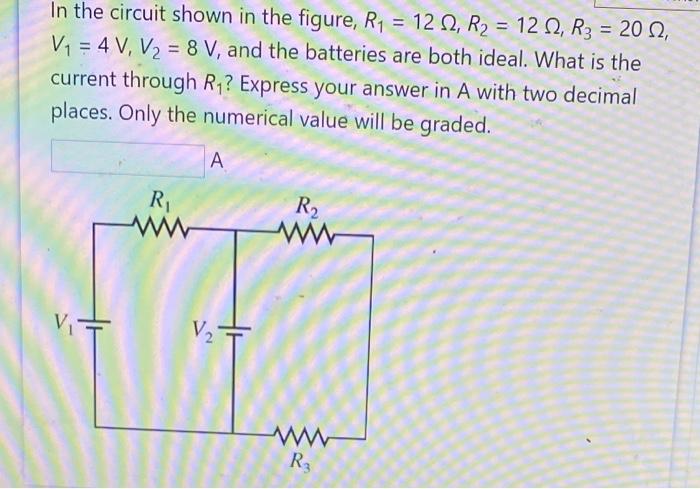

In The Circuit Shown In The Figure R 122 R 122 R3 2002 V 4 V V 8 V And The Batteries Are Both Ideal 1
In The Circuit Shown In The Figure R 122 R 122 R3 2002 V 4 V V 8 V And The Batteries Are Both Ideal 1 (49.65 KiB) Viewed 10 times
In the circuit shown in the figure, R₁ = 122, R₂ = 122, R3 = 2002, V₁ = 4 V₁ V₂ = 8 V, and the batteries are both ideal. What is the current through R₁? Express your answer in A with two decimal places. Only the numerical value will be graded. A V₁- R₁ www V₂ R₂ R₂
