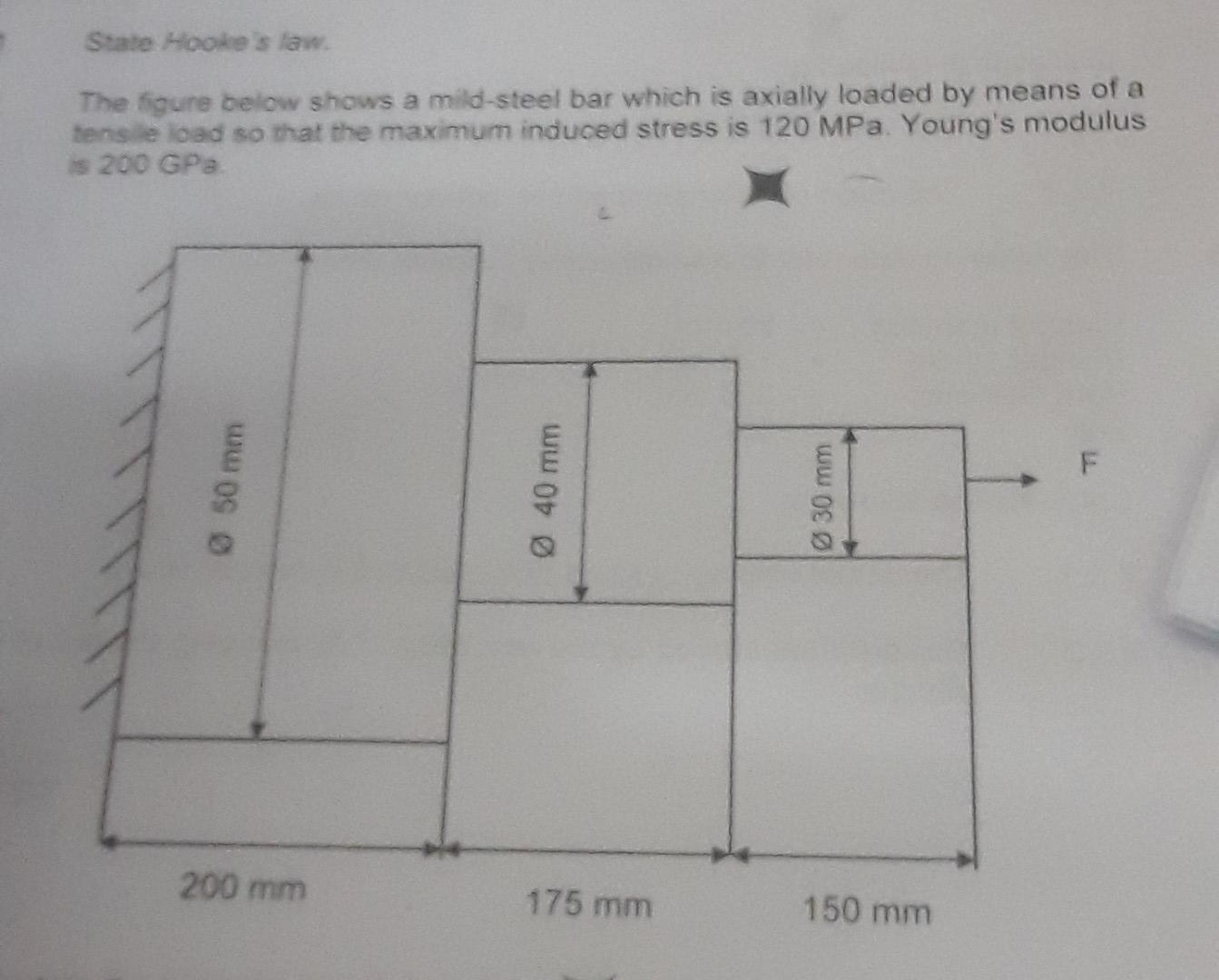

State Hooke's law. The figure below shows a mild-steel bar which is axially loaded by means of a tensile load so that the maximum induced stress is 120 MPa. Young's modulus is 200 GPa Ø 50 mm 200 mm Ø 40 mm 175 mm Ø 30 mm 150 mm

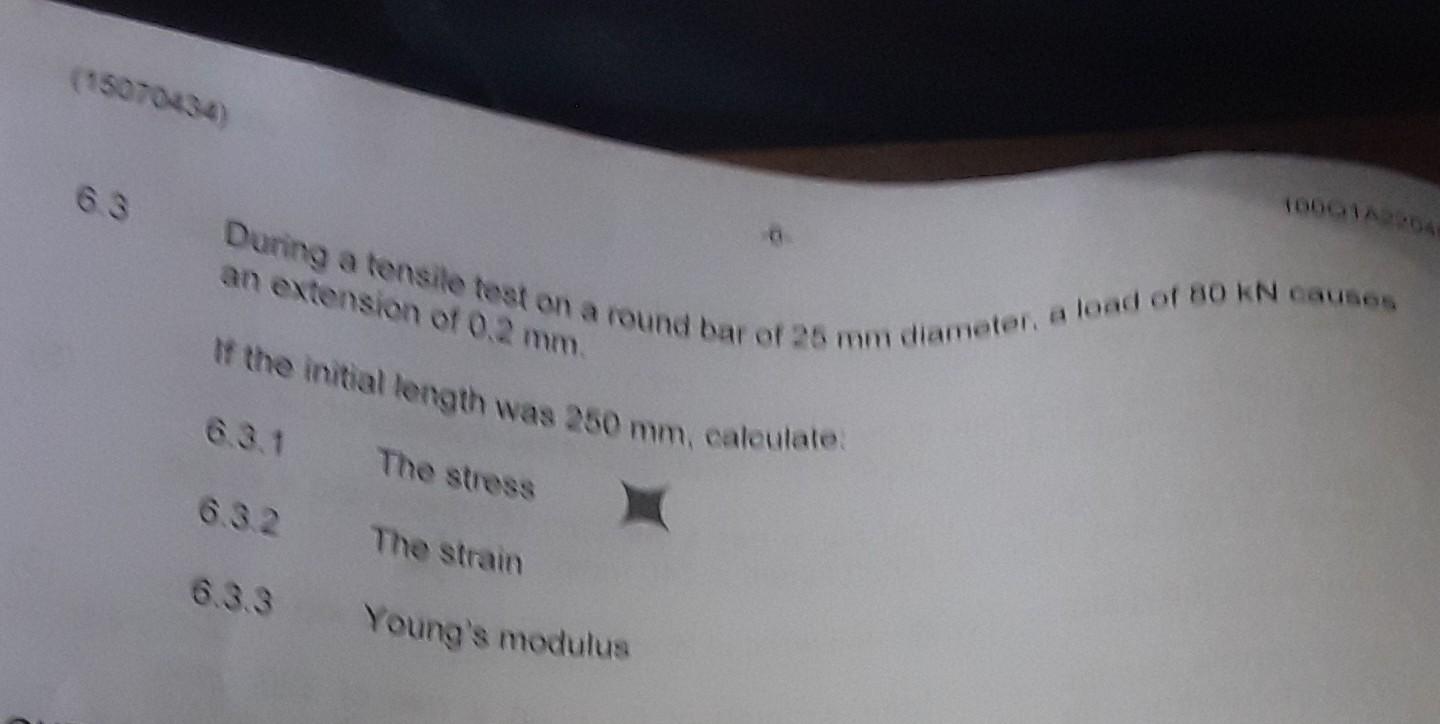

(15070434) During a tensile test on a round bar of 25 mm diameter, a load of 80 KN causes an extension of 0.2 mm. If the initial length was 250 mm, calculate: 6.3.1 6.3.2 The stress The strain Young's modulus 1000142204
