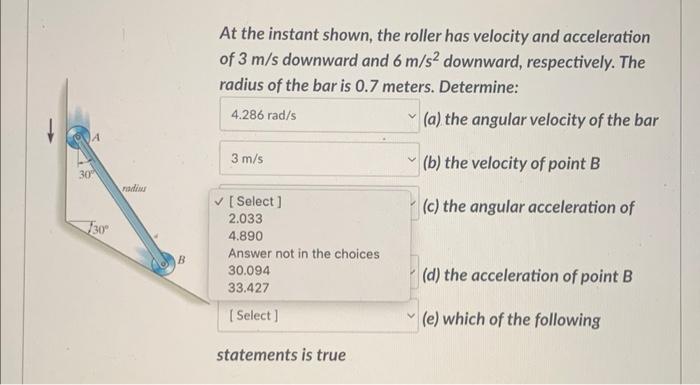

30 A 130 radius B At the instant shown, the roller has velocity and acceleration of 3 m/s downward and 6 m/s² downward, respectively. The radius of the bar is 0.7 meters. Determine: 4.286 rad/s (a) the angular velocity of the bar (b) the velocity of point B (c) the angular acceleration of 3 m/s ✓ [Select] 2.033 4.890 Answer not in the choices 30.094 33.427 [Select] statements is true (d) the acceleration of point B (e) which of the following

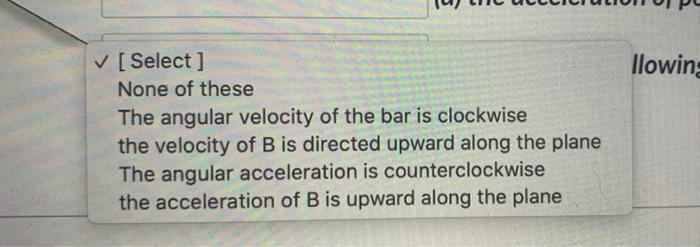

✓ [Select] None of these The angular velocity of the bar is clockwise the velocity of B is directed upward along the plane The angular acceleration is counterclockwise the acceleration of B is upward along the plane llowing
