Based on Figure 1 below, generally explain the purpose of installing series of heat exchanger, E1102 and E1103 with V-11

[answerhappygod]

Based On Figure 1 Below Generally Explain The Purpose Of Installing Series Of Heat Exchanger E1102 And E1103 With V 11 1 (30.01 KiB) Viewed 10 times

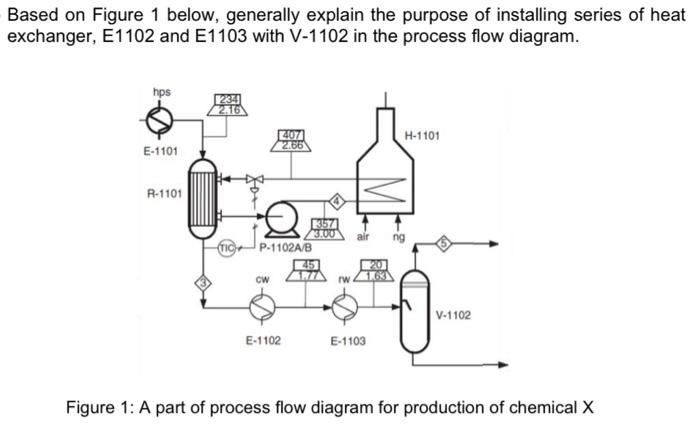

Based on Figure 1 below, generally explain the purpose of installing series of heat exchanger, E1102 and E1103 with V-1102 in the process flow diagram. hps E-1101 R-1101 234 16 TIC 407 2.66 P-1102A/B CW E-1102 357 3.00 45 rw air E-1103 H-1101 V-1102 Figure 1: A part of process flow diagram for production of chemical X
