Using MOHR CIRCLE, what is the resulting "VERTICAL" NORMAL STRESS at the given angle plane point? a. 44.03 MPa b. 75.00

Post by answerhappygod »

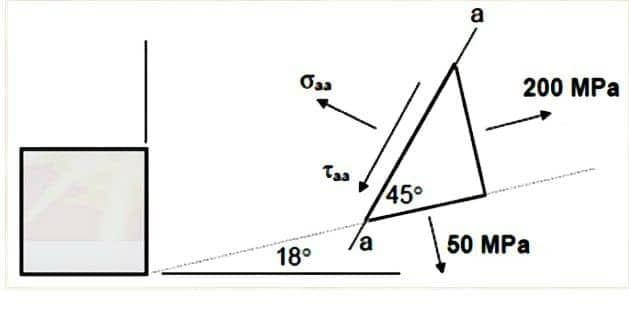

Using MOHR CIRCLE, what is the resulting "VERTICAL" NORMAL
Using Mohr Circle What Is The Resulting Vertical Normal Stress At The Given Angle Plane Point A 44 03 Mpa B 75 00 1
Using Mohr Circle What Is The Resulting Vertical Normal Stress At The Given Angle Plane Point A 44 03 Mpa B 75 00 1 (13.75 KiB) Viewed 16 times
STRESS at the given angle plane point?
a. 44.03 MPa
b. 75.00 MPa
c. 64.32 MPa
d. 185.68 MPa
Osa 18° دوا /a 45° a 200 MPa 50 MPa
