QUESTION 4 [25 MARKS] A truss structure is subjected to two (2) external forces as shown in Figure 4. Determine the forc

Post by answerhappygod »

Question 4 25 Marks A Truss Structure Is Subjected To Two 2 External Forces As Shown In Figure 4 Determine The Forc 1
Question 4 25 Marks A Truss Structure Is Subjected To Two 2 External Forces As Shown In Figure 4 Determine The Forc 1 (76.51 KiB) Viewed 23 times

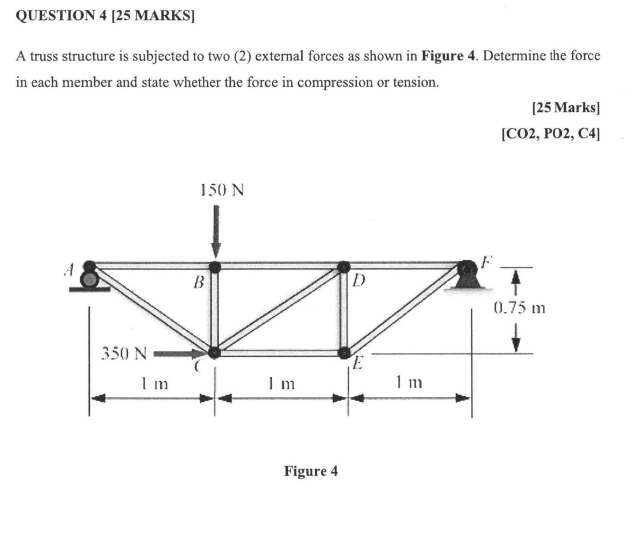

QUESTION 4 [25 MARKS] A truss structure is subjected to two (2) external forces as shown in Figure 4. Determine the force in each member and state whether the force in compression or tension. 350 N 1 m 150 N B Im Figure 4 D 1 m [25 Marks] [CO2, PO2, C4] T 0.75 m
