(45 min) hestion 3 (15 Points) B -4 m- a 180 KN 340 kN-m D -4 m-4 m-4 m- C For the Beam shown below and using the Conjug

[answerhappygod]

45 Min Hestion 3 15 Points B 4 M A 180 Kn 340 Kn M D 4 M 4 M 4 M C For The Beam Shown Below And Using The Conjug 1 (27.79 KiB) Viewed 13 times

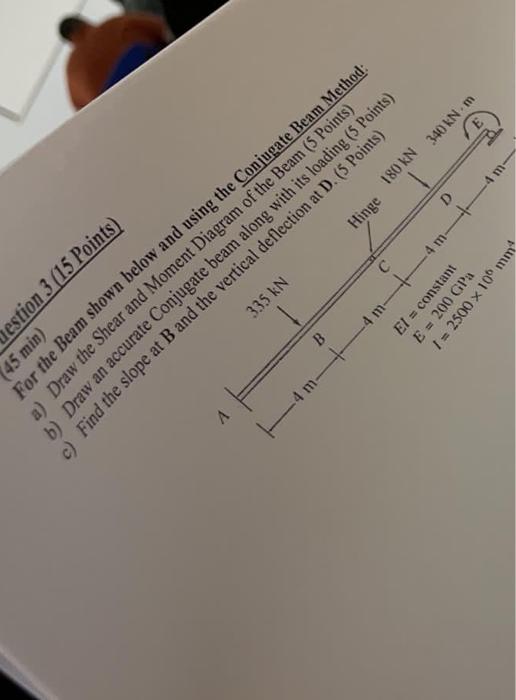

(45 min) hestion 3 (15 Points) B -4 m- a 180 KN 340 kN-m D -4 m-4 m-4 m- C For the Beam shown below and using the Conjugate Beam Method: a) Draw the Shear and Moment Diagram of the Beam (5 Points) b) Draw an accurate Conjugate beam along with its loading (5 Points) c) Find the slope at B and the vertical deflection at D. (5 Points) 335 kN Hinge El = constant E = 200 GPa /= 2500 x 100 mmª
