1 Determine The End Moments Of The Beam Shown Use The Three Moment Equation E 205 Gpa Iab Cd 150x105 Mm Isc 1 (89.4 KiB) Viewed 18 times
PLEASE HELP!!!
Vertical Reaction at A
Magnitude of the end moment at B
Vertical Reaction at C
Magnitude of the end moment at C

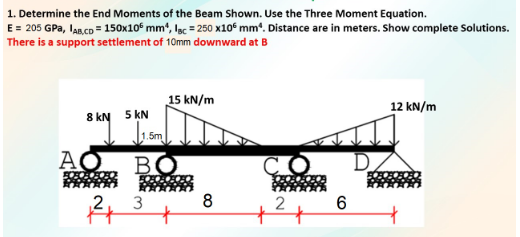

1. Determine the End Moments of the Beam Shown. Use the Three Moment Equation. E = 205 GPA, IAB,CD = 150x105 mm², Isc = 250 x105 mm². Distance are in meters. Show complete Solutions. There is a support settlement of 10mm downward at B A 8 KN 5 KN 2. # 15 kN/m 1.5m BO XOXOR 3 8 2 6 12 kN/m
