An 8 m simple beam is loaded with a 208 kN point load at the first third of its length. The cross section of the beam is

[answerhappygod]

An 8 M Simple Beam Is Loaded With A 208 Kn Point Load At The First Third Of Its Length The Cross Section Of The Beam Is 1 (313.03 KiB) Viewed 17 times

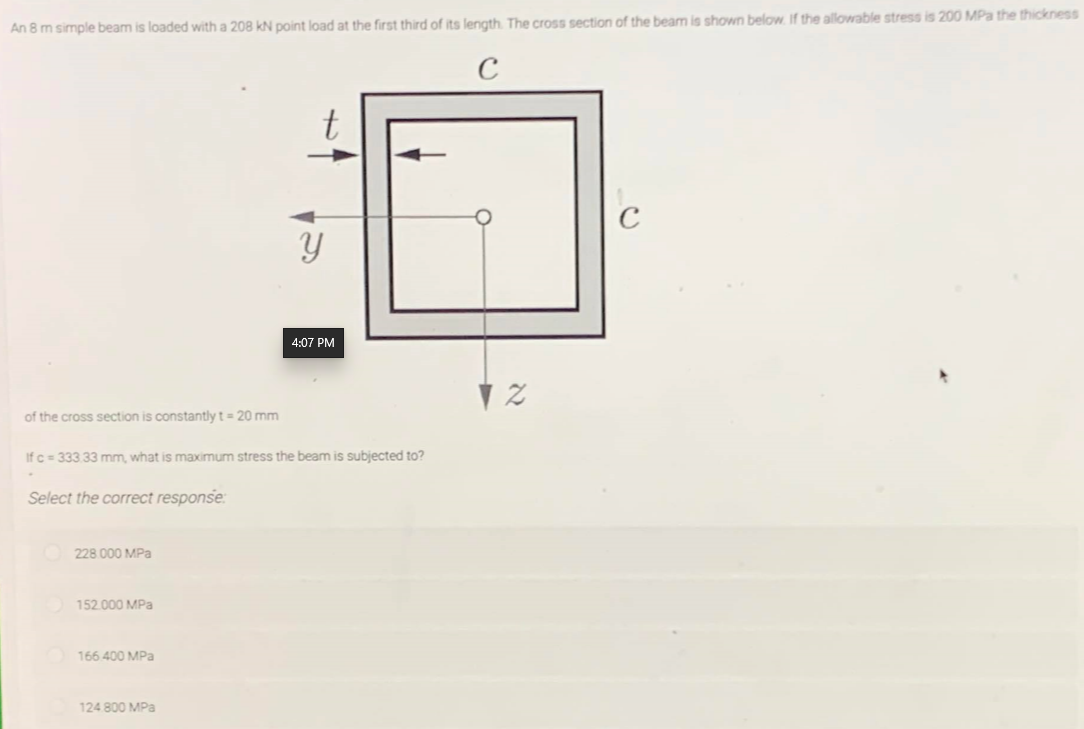

An 8 m simple beam is loaded with a 208 kN point load at the first third of its length. The cross section of the beam is shown below. If the allowable stress is 200 MPa the thickness C of the cross section is constantly t = 20 mm Select the correct response: 228.000 MPa If c = 333.33 mm, what is maximum stress the beam is subjected to? 152.000 MPa 166 400 MPa t 124 800 MPa Y 4:07 PM 12
