Question 2 of 20 AC150 x 19.3 is used as a boom to support the 15 kN load which is then mainly supported by a cable as s

[answerhappygod]

Question 2 Of 20 Ac150 X 19 3 Is Used As A Boom To Support The 15 Kn Load Which Is Then Mainly Supported By A Cable As S 1 (21.7 KiB) Viewed 13 times

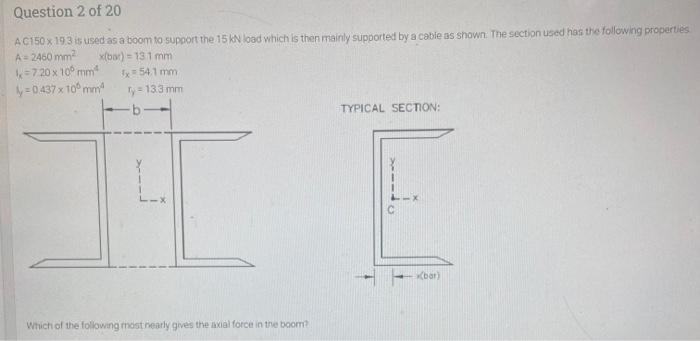

Question 2 of 20 AC150 x 19.3 is used as a boom to support the 15 kN load which is then mainly supported by a cable as shown. The section used has the following properties A=2460 mm² = 7:20 x 100 mm² =0.437 x 100 mm x(bar) = 131 mm x=54.1 mm Ty = 13.3 mm Which of the following most nearly gives the axial force in the boom? TYPICAL SECTION: I. (bar)
