QUESTION 8 (a) List two(2) advantages and two (2) disadvantages of welded joints (b) Name the type of bonding forces app

Post by answerhappygod »

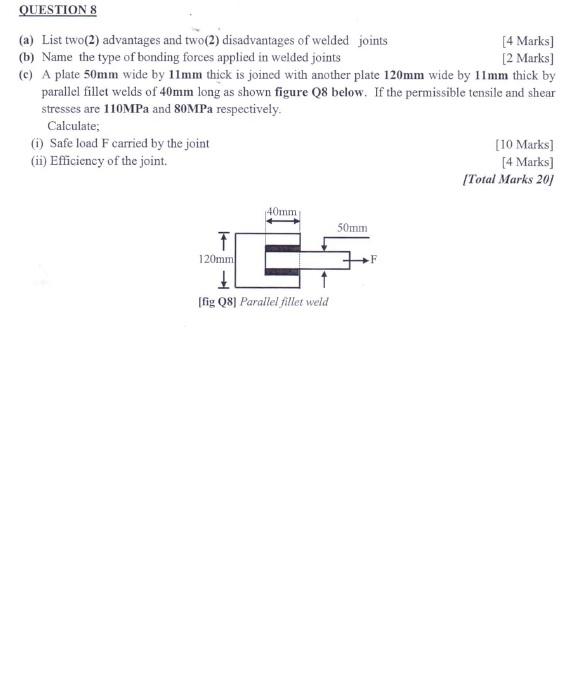

Question 8 A List Two 2 Advantages And Two 2 Disadvantages Of Welded Joints B Name The Type Of Bonding Forces App 1
Question 8 A List Two 2 Advantages And Two 2 Disadvantages Of Welded Joints B Name The Type Of Bonding Forces App 1 (25.34 KiB) Viewed 13 times
Please show all the steps, and where necessarly includesketches
QUESTION 8 (a) List two(2) advantages and two (2) disadvantages of welded joints (b) Name the type of bonding forces applied in welded joints (c) A plate 50mm wide by 11mm thick is joined with another plate 120mm wide by 11mm thick by parallel fillet welds of 40mm long as shown figure Q8 below. If the permissible tensile and shear stresses are 110MPa and 80MPa respectively. Calculate; (i) Safe load F carried by the joint (ii) Efficiency of the joint. 120mm 40mm [fig Q8] Parallel fillet weld 50mm F [4 Marks] [2 marks] [10 Marks] [4 Marks] [Total Marks 20]
