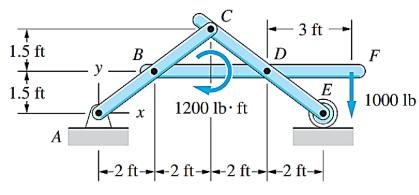

A rigid frame is fabricated by joining the three bars with pinsat B, C, and D. The frame is loaded as shown. The supports consistof a pin at A and a roller support at E.
a. Draw the FBD of the frame, neglecting the weights of themembers.
b. Determine the reactions at A and E.
A Rigid Frame Is Fabricated By Joining The Three Bars With Pins At B C And D The Frame Is Loaded As Shown The Suppor 1 (13.67 KiB) Viewed 22 times
T 1.5 ft + 1.5 ft + A y B x C 1200 lb. ft D -3 ft- 2 ft2 ft2 ft---2 ft- E F 1000 lb
