15. Why is it not possible to manufacture the given workpiece? Height of the groove is not clearly defined Height of the

Post by answerhappygod »

15 Why Is It Not Possible To Manufacture The Given Workpiece Height Of The Groove Is Not Clearly Defined Height Of The 1
15 Why Is It Not Possible To Manufacture The Given Workpiece Height Of The Groove Is Not Clearly Defined Height Of The 1 (73.11 KiB) Viewed 16 times

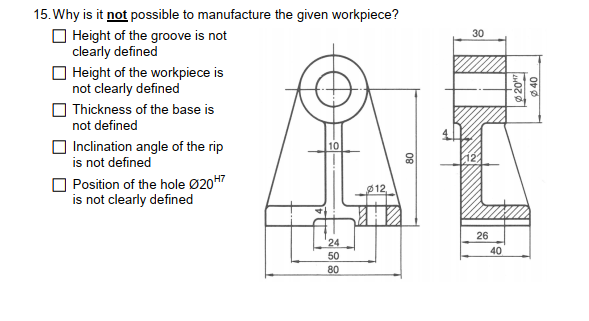

15. Why is it not possible to manufacture the given workpiece? Height of the groove is not clearly defined Height of the workpiece is not clearly defined Thickness of the base is not defined Inclination angle of the rip is not defined Position of the hole Ø20H7 is not clearly defined 10 24 50 80 12 80 30 26 40 20 Ø40
