& Fons A structure is to be built as shown supporting a uniform load of 18 kN/m. The location for the supports at A and

Post by answerhappygod »

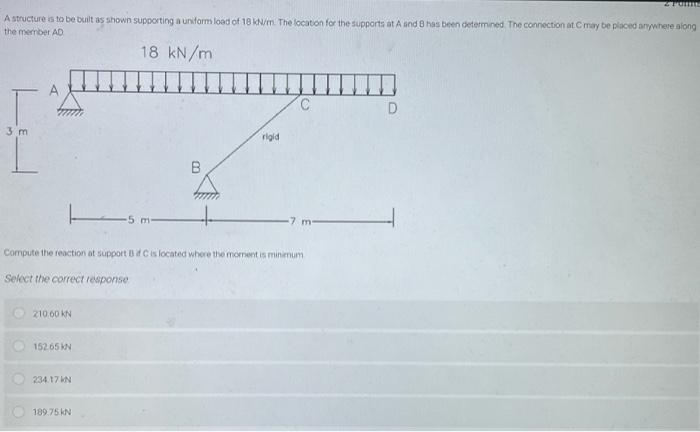

Fons A Structure Is To Be Built As Shown Supporting A Uniform Load Of 18 Kn M The Location For The Supports At A And 1
Fons A Structure Is To Be Built As Shown Supporting A Uniform Load Of 18 Kn M The Location For The Supports At A And 1 (22.8 KiB) Viewed 15 times
& Fons A structure is to be built as shown supporting a uniform load of 18 kN/m. The location for the supports at A and 8 has been determined. The connection at C may be placed anywhere along the member AD 18 kN/m 3 m A 210.00 KN 152.65 KN 234.17 KN 5 m Compute the reaction at support B i C is located where the moment is minimum. Select the correct response 189.75 kN rigid C 7 m- D
