6. Implement F (X,Y,Z) = XY'Z + YZ' by using a) Only one 4-to-1 MUX with X and Y as Select lines for MSB and LSB respect

[answerhappygod]

6 Implement F X Y Z Xy Z Yz By Using A Only One 4 To 1 Mux With X And Y As Select Lines For Msb And Lsb Respect 1 (37.28 KiB) Viewed 16 times

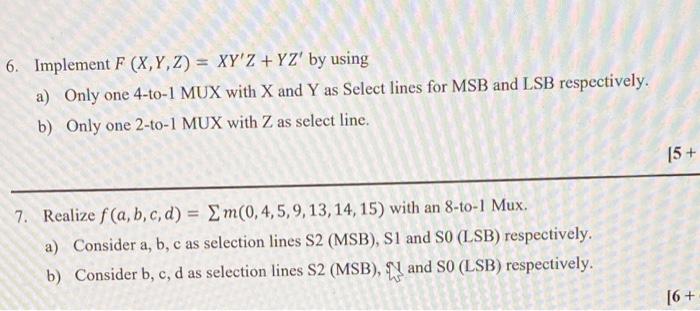

6. Implement F (X,Y,Z) = XY'Z + YZ' by using a) Only one 4-to-1 MUX with X and Y as Select lines for MSB and LSB respectively. b) Only one 2-to-1 MUX with Z as select line. 7. Realize f(a, b, c, d) = m(0, 4, 5, 9, 13, 14, 15) with an 8-to-1 Mux. a) Consider a, b, c as selection lines S2 (MSB), S1 and S0 (LSB) respectively. b) Consider b, c, d as selection lines S2 (MSB), and S0 (LSB) respectively. 15+ [6+
