A telegraph line can be modeled as a circuit comprised of a voltage source plus a resistor and an inductor in series. Co

Post by answerhappygod »

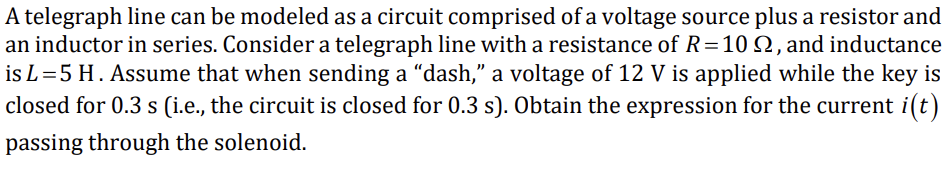

A Telegraph Line Can Be Modeled As A Circuit Comprised Of A Voltage Source Plus A Resistor And An Inductor In Series Co 1
A Telegraph Line Can Be Modeled As A Circuit Comprised Of A Voltage Source Plus A Resistor And An Inductor In Series Co 1 (64.29 KiB) Viewed 18 times
A telegraph line can be modeled as a circuit comprised of a voltage source plus a resistor and an inductor in series. Consider a telegraph line with a resistance of R=10, and inductance is L=5 H. Assume that when sending a “dash,” a voltage of 12 V is applied while the key is closed for 0.3 s (i.e., the circuit is closed for 0.3 s). Obtain the expression for the current i(t) passing through the solenoid.
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
