B3 In a 3-phase, 4-wire system, the symmetrical components of currents in R. Y and B lines under abnormal conditions of

Post by answerhappygod »

B3 In A 3 Phase 4 Wire System The Symmetrical Components Of Currents In R Y And B Lines Under Abnormal Conditions Of 1
B3 In A 3 Phase 4 Wire System The Symmetrical Components Of Currents In R Y And B Lines Under Abnormal Conditions Of 1 (13.77 KiB) Viewed 18 times

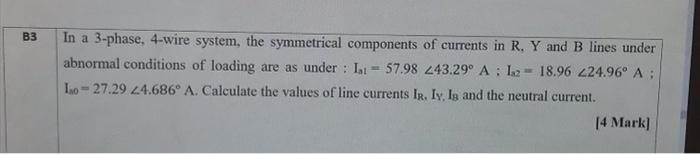

B3 In a 3-phase, 4-wire system, the symmetrical components of currents in R. Y and B lines under abnormal conditions of loading are as under I 57.98 243.29° A: L 18.96 224.96º A ; Iso 27.29 24.686° A. Calculate the values of line currents IR. Iy, Is and the neutral current. [4 Mark]
