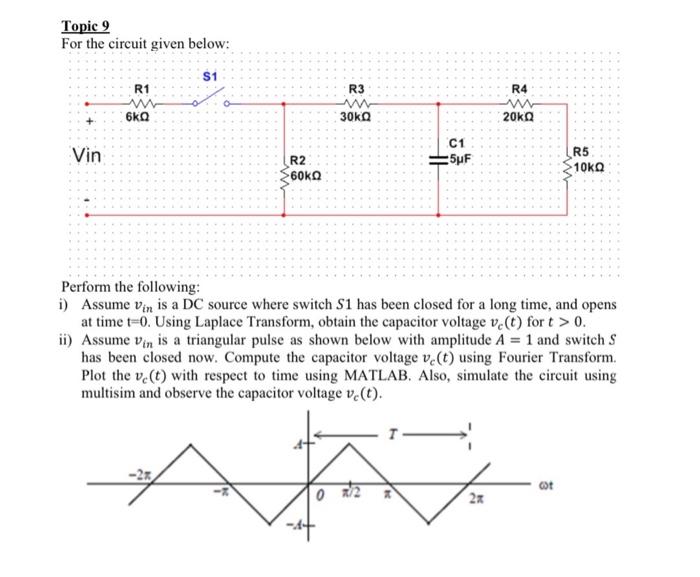

Topic 9 For the circuit given below: Vin R1 6KQ $1 R2 60k R3 0 m 30kQ C1 5µF x Perform the following: i) Assume vin is a DC source where switch S1 has been closed for a long time, and opens at time t-0. Using Laplace Transform, obtain the capacitor voltage v. (t) for t > 0. ii) Assume vin is a triangular pulse as shown below with amplitude A = 1 and switch S has been closed now. Compute the capacitor voltage ve(t) using Fourier Transform. Plot the ve(t) with respect to time using MATLAB. Also, simulate the circuit using multisim and observe the capacitor voltage ve(t). R4 ww 20KQ 2x R5 -10kQ Got
