(10 pts) The vestigial filter H, (a) in the transmitter has a function shown in the following figure. The carrier freque

Post by answerhappygod »

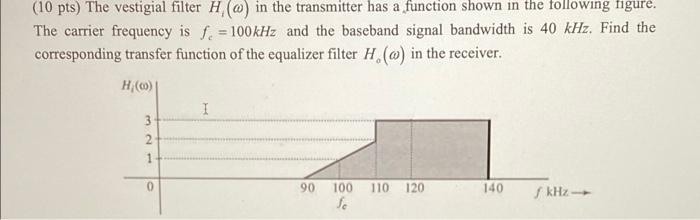

10 Pts The Vestigial Filter H A In The Transmitter Has A Function Shown In The Following Figure The Carrier Freque 1
10 Pts The Vestigial Filter H A In The Transmitter Has A Function Shown In The Following Figure The Carrier Freque 1 (18.99 KiB) Viewed 12 times
(10 pts) The vestigial filter H, (a) in the transmitter has a function shown in the following figure. The carrier frequency is f = 100kHz and the baseband signal bandwidth is 40 kHz. Find the corresponding transfer function of the equalizer filter H. (@) in the receiver. H₂(0)| 2 1 0 I 90 100 110 120 fe 140 f kHz-
