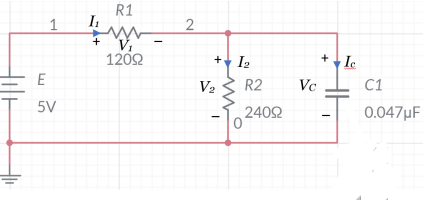

1.Perform DC steady-state analysis for the circuit in Figure 1and calculate all the circuit voltages and currents.
1 Perform Dc Steady State Analysis For The Circuit In Figure 1 And Calculate All The Circuit Voltages And Currents 2 W 1 (23.59 KiB) Viewed 12 times

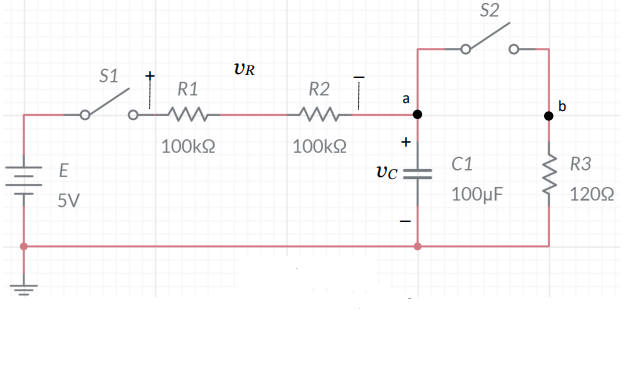

2. Write equations for the capacitor voltage and currentfor the circuit in figure 2 when S2 is opened and S1 is closed at t= 0. Assume Zero is initial voltage.
1 Perform Dc Steady State Analysis For The Circuit In Figure 1 And Calculate All The Circuit Voltages And Currents 2 W 2 (40.48 KiB) Viewed 12 times
1 E 5V R1 I₁ www + V₁ 12092 2 +1₂ V₂ R2 0 24092 Vc Ic C1 0.047μF
E 5V S1 R1 ww 100ΚΩ UR R2 www 100kQ VC a + S2 C1 100μF b R3 12092
