Consider the following broadcasting communication system with maximum frequency deviation = ±75 kHz and highest modulati

Post by answerhappygod »

Consider The Following Broadcasting Communication System With Maximum Frequency Deviation 75 Khz And Highest Modulati 1
Consider The Following Broadcasting Communication System With Maximum Frequency Deviation 75 Khz And Highest Modulati 1 (54.47 KiB) Viewed 23 times

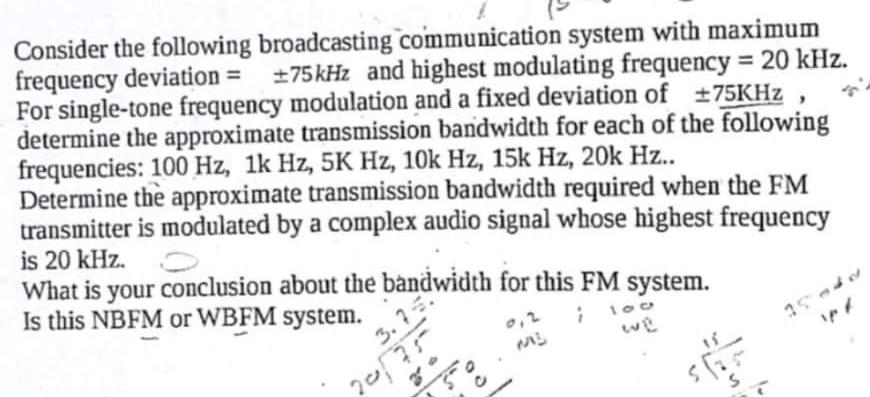

Consider the following broadcasting communication system with maximum frequency deviation = ±75 kHz and highest modulating frequency = 20 kHz. For single-tone frequency modulation and a fixed deviation of ±75KHz determine the approximate transmission bandwidth for each of the following frequencies: 100 Hz, 1k Hz, 5K Hz, 10k Hz, 15k Hz, 20k Hz.. Determine the approximate transmission bandwidth required when the FM transmitter is modulated by a complex audio signal whose highest frequency is 20 kHz. What is your conclusion about the bandwidth for this FM system. Is this NBFM or WBFM system. 100 ; 3. 20/73 M3 S
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
