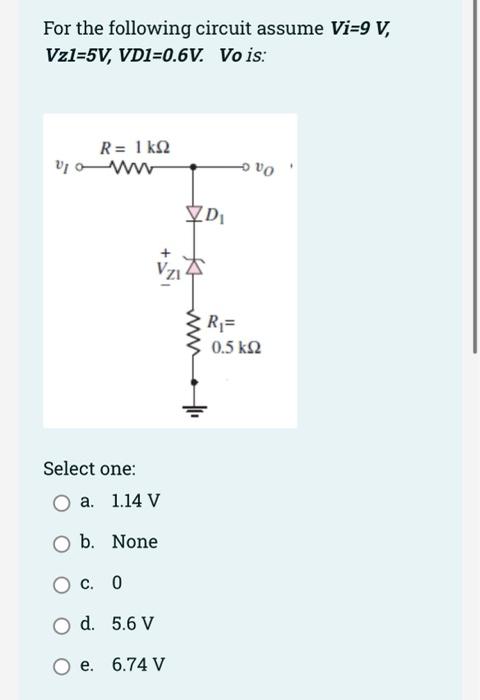

For the following circuit assume Vi=9 V, Vz1-5V, VD1=0.6V. Vo is: R = 1kQ2 v/ww Select one: O a. 1.14 V O b. None c. 0 O
