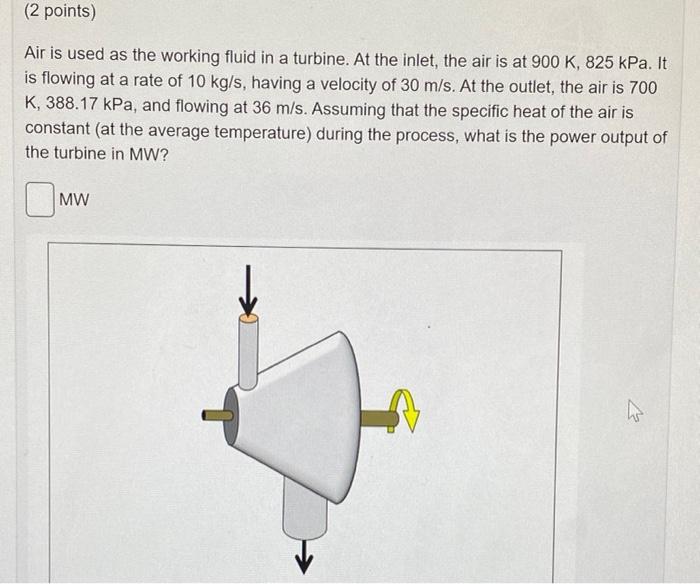

- 2 Points Air Is Used As The Working Fluid In A Turbine At The Inlet The Air Is At 900 K 825 Kpa It Is Flowing At A 1 (49.66 KiB) Viewed 52 times
(2 points) Air is used as the working fluid in a turbine. At the inlet, the air is at 900 K, 825 kPa. It is flowing at a
-
answerhappygod
- Site Admin
- Posts: 899603
- Joined: Mon Aug 02, 2021 8:13 am
(2 points) Air is used as the working fluid in a turbine. At the inlet, the air is at 900 K, 825 kPa. It is flowing at a
(2 points) Air is used as the working fluid in a turbine. At the inlet, the air is at 900 K, 825 kPa. It is flowing at a rate of 10 kg/s, having a velocity of 30 m/s. At the outlet, the air is 700 K, 388.17 kPa, and flowing at 36 m/s. Assuming that the specific heat of the air is constant (at the average temperature) during the process, what is the power output of the turbine in MW? MW ہے
