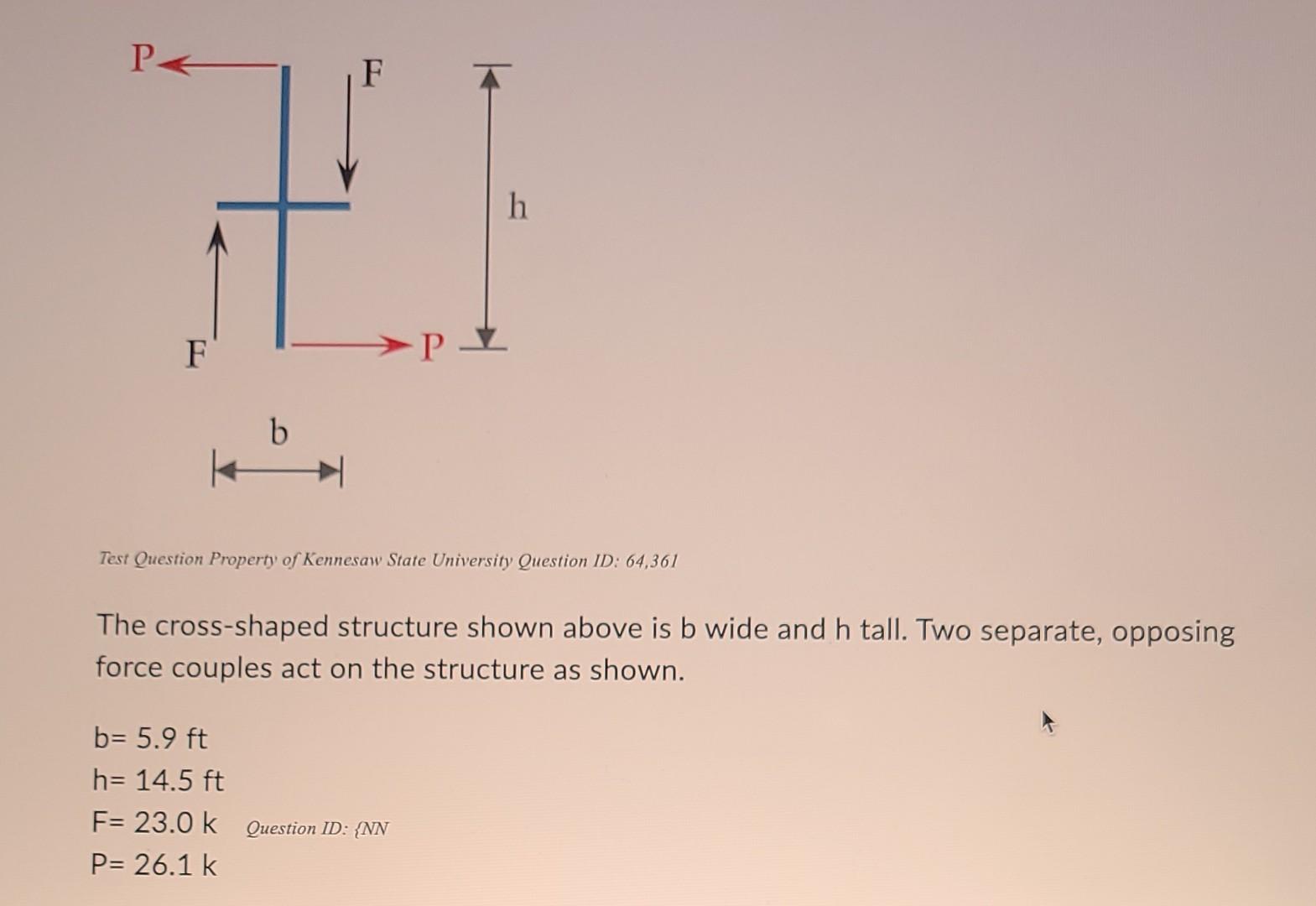

P F I F P b ✈ h Test Question Property of Kennesaw State University Question ID: 64,361 The cross-shaped structure shown above is b wide and h tall. Two separate, opposing force couples act on the structure as shown. b= 5.9 ft h= 14.5 ft F= 23.0 k Question ID: {NN P= 26.1 k

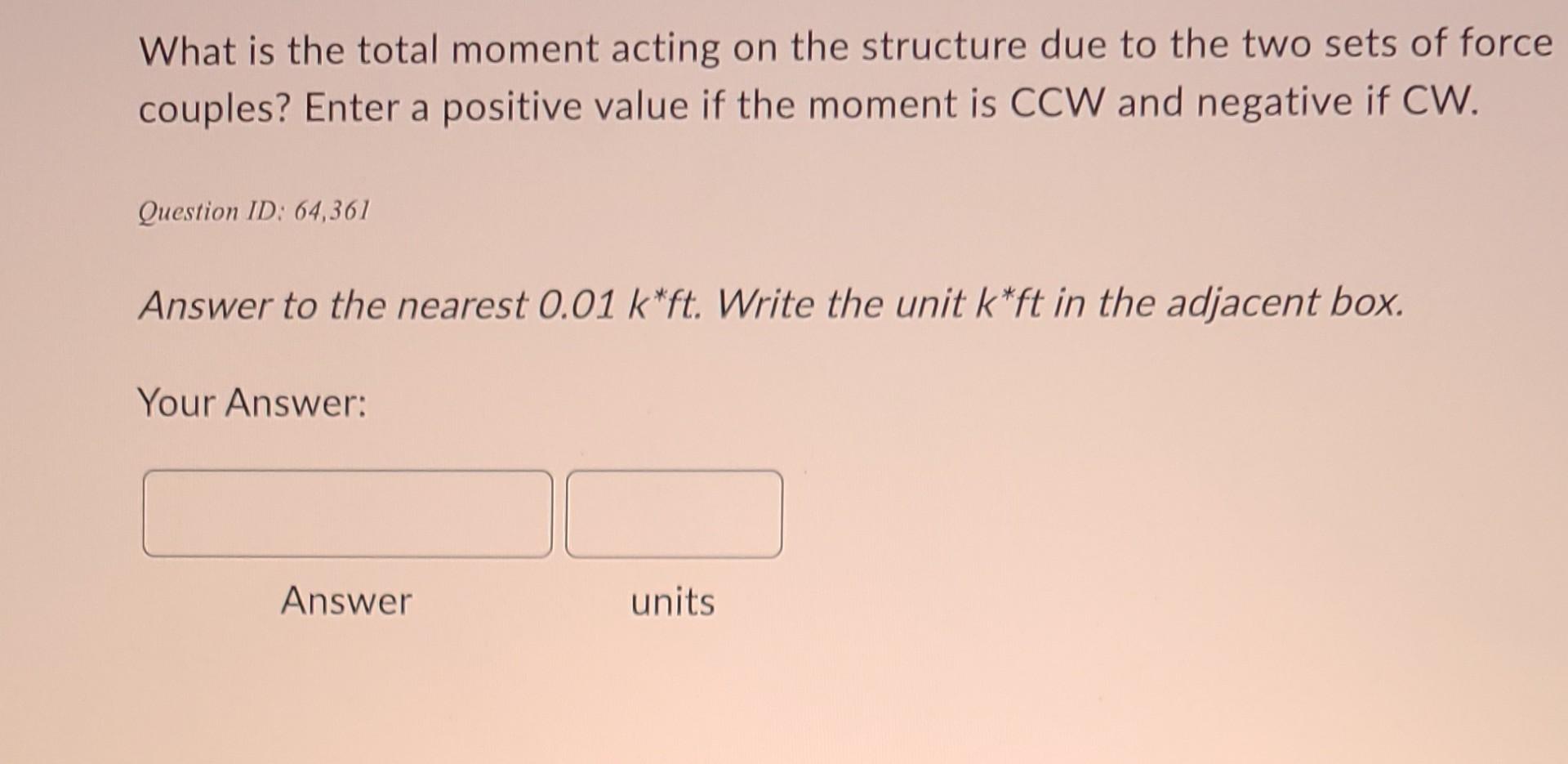

What is the total moment acting on the structure due to the two sets of force couples? Enter a positive value if the moment is CCW and negative if CW. Question ID: 64,361 Answer to the nearest 0.01 k*ft. Write the unit k*ft in the adjacent box. Your Answer: Answer units
