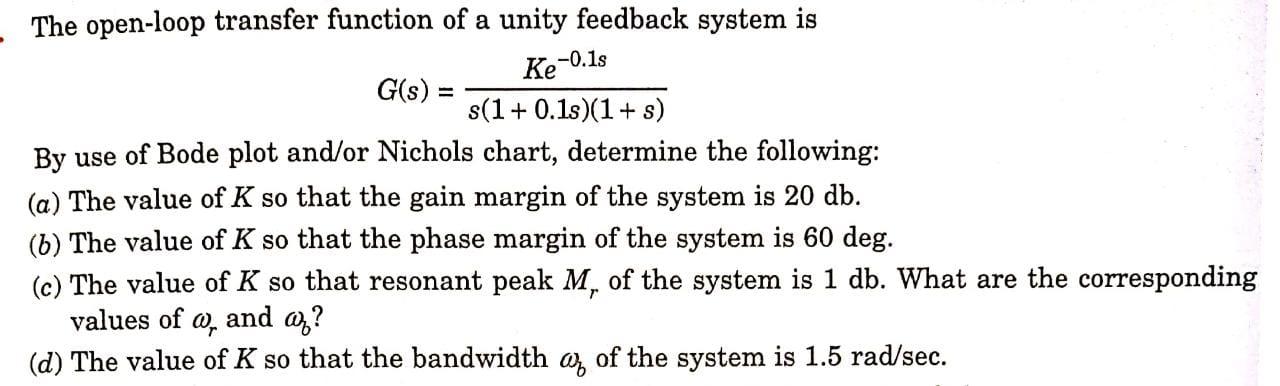

The open-loop transfer function of a unity feedback system is Ke-0.1s G(s) = s(1 + 0.1s)(1+s) By use of Bode plot and/or
-
answerhappygod
- Site Admin
- Posts: 899603
- Joined: Mon Aug 02, 2021 8:13 am
The open-loop transfer function of a unity feedback system is Ke-0.1s G(s) = s(1 + 0.1s)(1+s) By use of Bode plot and/or
The open-loop transfer function of a unity feedback system is Ke-0.1s G(s) = s(1 + 0.1s)(1+s) By use of Bode plot and/or Nichols chart, determine the following: (a) The value of K so that the gain margin of the system is 20 db. (b) The value of K so that the phase margin of the system is 60 deg. (c) The value of K so that resonant peak M, of the system is 1 db. What are the corresponding values of w, and a? (d) The value of K so that the bandwidth a of the system is 1.5 rad/sec.
