We empower peopl 3) A 230 V, 60 Hz, 6-pole, Y-connected induction motor has the following parameters in ohms per phase r

Post by answerhappygod »

We Empower Peopl 3 A 230 V 60 Hz 6 Pole Y Connected Induction Motor Has The Following Parameters In Ohms Per Phase R 1
We Empower Peopl 3 A 230 V 60 Hz 6 Pole Y Connected Induction Motor Has The Following Parameters In Ohms Per Phase R 1 (485.71 KiB) Viewed 27 times

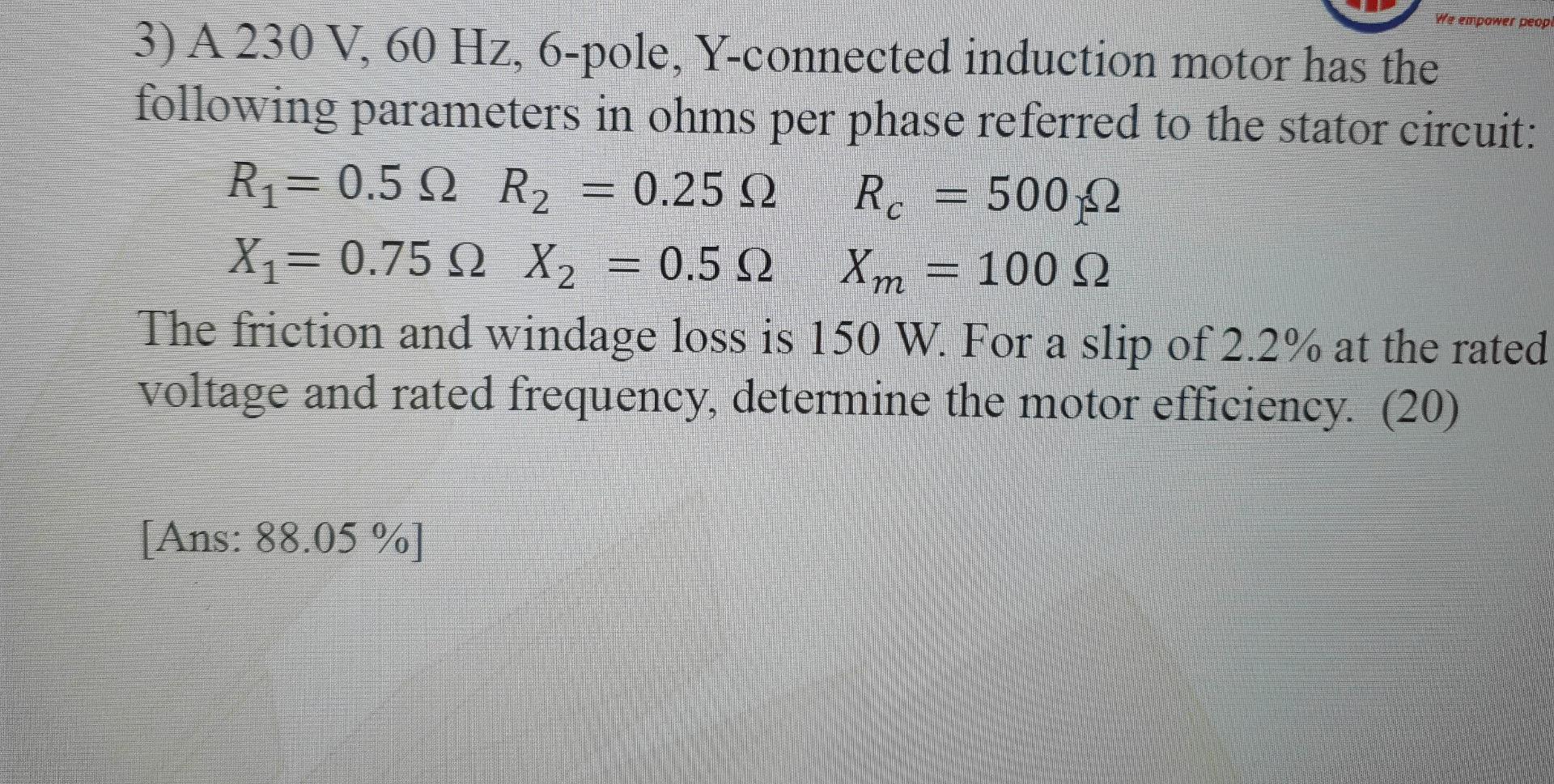

We empower peopl 3) A 230 V, 60 Hz, 6-pole, Y-connected induction motor has the following parameters in ohms per phase referred to the stator circuit: R₁=0.592 R₂ 0.25 Ω Re 5002 X1= 0.75 Ω _ X2 = 0.5 Ω Xm = 100 Ω The friction and windage loss is 150 W. For a slip of 2.2% at the rated voltage and rated frequency, determine the motor efficiency. (20) [Ans: 88.05 %]
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
