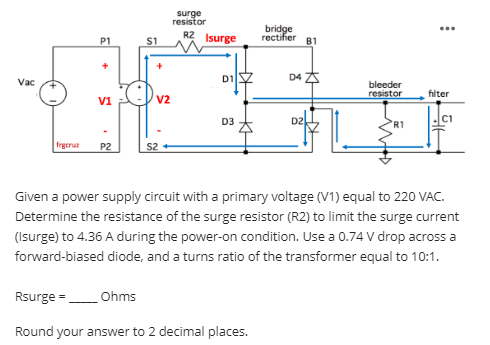

Vac P1 + V1 frgcruz P2 $1 + V2 surge resistor R2 Isurge D1 D3 KF bridge rectifier B1 Rsurge =________ Ohms Round your answer to 2 decimal places. D4 D2 bleeder resistor R1 ⠀ filter Given a power supply circuit with a primary voltage (V1) equal to 220 VAC. Determine the resistance of the surge resistor (R2) to limit the surge current (Isurge) to 4.36 A during the power-on condition. Use a 0.74 V drop across a forward-biased diode, and a turns ratio of the transformer equal to 10:1.
