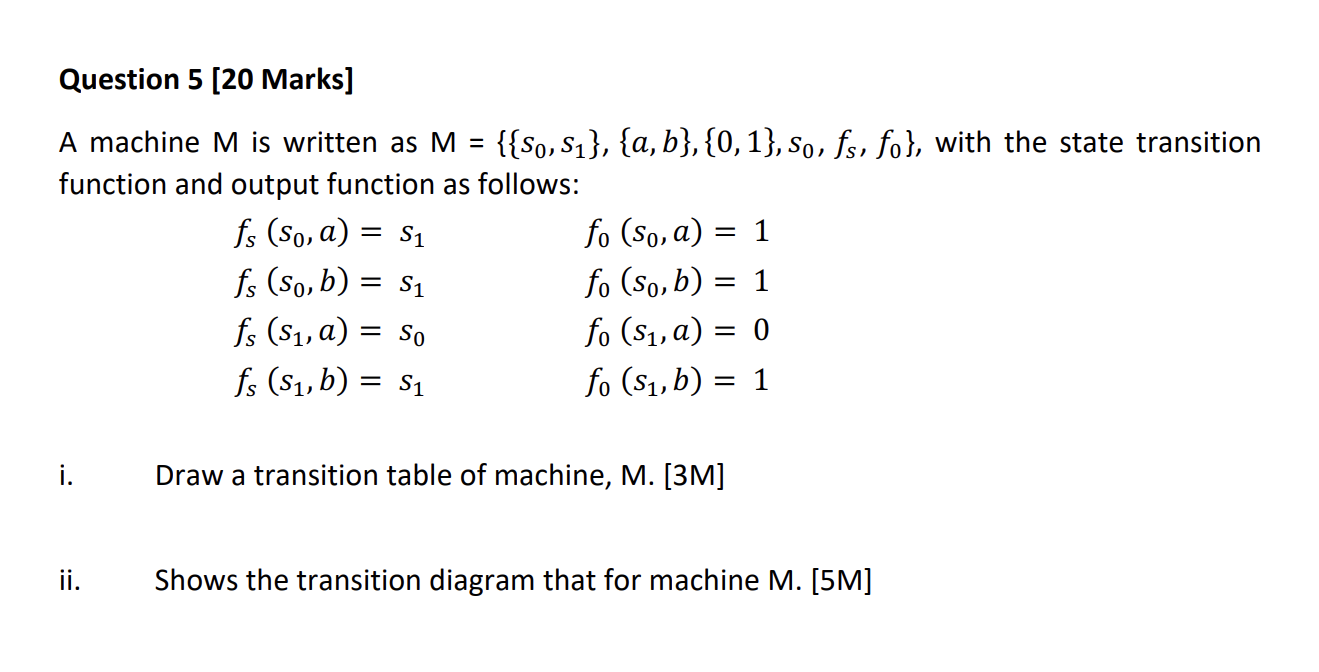

Question 5 [20 Marks] A machine M is written as M = {{So, $₁}, {a, b}, {0, 1}, So, fs, fo}, with the state transition fu

[answerhappygod]

Question 5 20 Marks A Machine M Is Written As M So A B 0 1 So Fs Fo With The State Transition Fu 1 (93.99 KiB) Viewed 33 times

Question 5 [20 Marks] A machine M is written as M = {{So, $₁}, {a, b}, {0, 1}, So, fs, fo}, with the state transition function and output function as follows: i. ii. fs (So, a) = $₁ fs (So, b) = $₁ fs (S₁, a) = So fs (S₁, b) = S1 fo (so, a) fo (So, b) fo ($₁, a) fo (S₁, b) 1 = 1 = 1 = 0 = 1 Draw a transition table of machine, M. [3M] Shows the transition diagram that for machine M. [5M]
