Two same gage and length cables hanging from the ceiling support a uniform cross-sectioned rod at 2 places A and B locat

Post by answerhappygod »

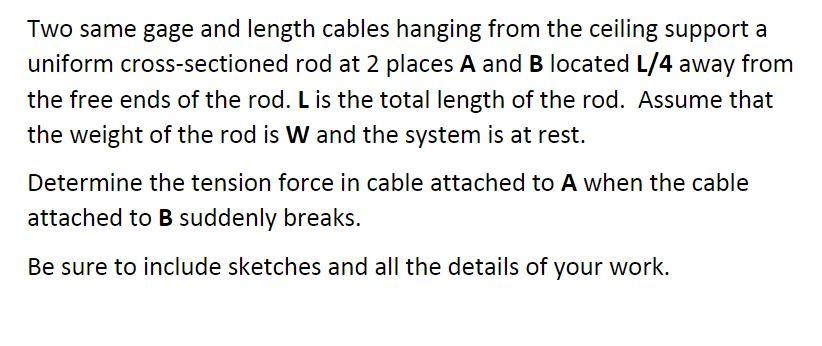

Two Same Gage And Length Cables Hanging From The Ceiling Support A Uniform Cross Sectioned Rod At 2 Places A And B Locat 1
Two Same Gage And Length Cables Hanging From The Ceiling Support A Uniform Cross Sectioned Rod At 2 Places A And B Locat 1 (48.93 KiB) Viewed 43 times
Two same gage and length cables hanging from the ceiling support a uniform cross-sectioned rod at 2 places A and B located 1/4 away from the free ends of the rod. L is the total length of the rod. Assume that the weight of the rod is W and the system is at rest. Determine the tension force in cable attached to A when the cable A attached to B suddenly breaks. Be sure to include sketches and all the details of your work.
