Q1. An electrical system is shown as follow, considering Ei as the input and Eo as the output. • List system equations a

Post by answerhappygod »

Q1 An Electrical System Is Shown As Follow Considering Ei As The Input And Eo As The Output List System Equations A 1
Q1 An Electrical System Is Shown As Follow Considering Ei As The Input And Eo As The Output List System Equations A 1 (165.2 KiB) Viewed 28 times

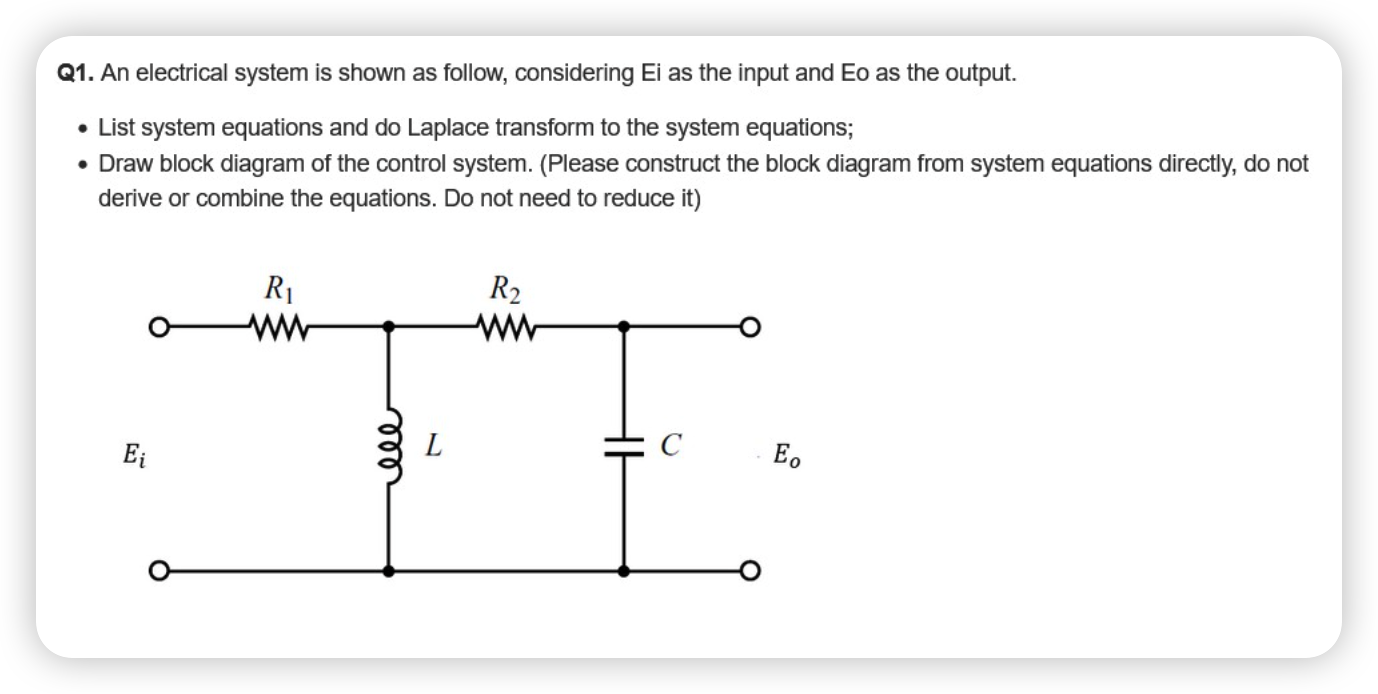

Q1. An electrical system is shown as follow, considering Ei as the input and Eo as the output. • List system equations and do Laplace transform to the system equations; • Draw block diagram of the control system. (Please construct the block diagram from system equations directly, do not derive or combine the equations. Do not need to reduce it) R1 R2 TE Ei L C E
