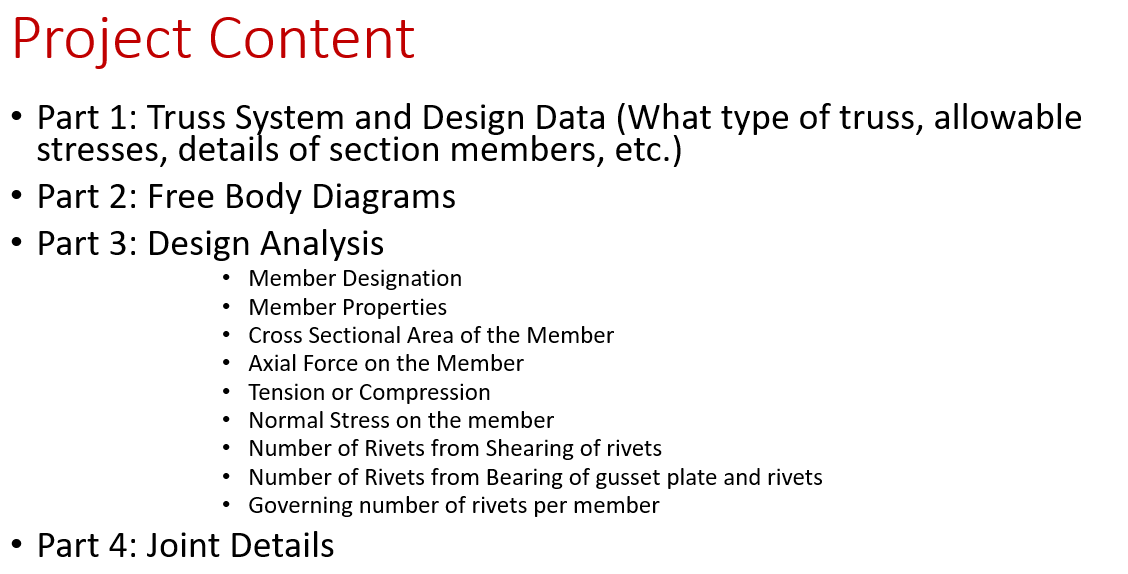

Project Content • Part 1: Truss System and Design Data (What type of truss, allowable stresses, details of section members, etc.) Part 2: Free Body Diagrams Part 3: Design Analysis • Member Designation • Member Properties • Cross Sectional Area of the Member Axial Force on the Member • Tension or Compression Normal Stress on the member Number of Rivets from Shearing of rivets • Number of Rivets from Bearing of gusset plate and rivets Governing number of rivets per member ● Part 4: Joint Details
Truss System *You have the freedom to design your own truss dimension Ⓒ LOADS: D X X = 30KN Y = 60KN Z = 70KN Thickness of gusset plate = 20mm Diameter of rivet = 16mm E L100X75X13 ZA Allowable Shearing Stress = 125Mpa Allowable Bearing Stress = 95Mpa F
