USING MICROSHIP STUDIO WRITE DOWN THE CODE ON THE PROGRAM USING
AVR ATmega2560 AN PROVIDE AN IMAGE SHOWING THE CODE WITH THE
RESULT.

Using Microship Studio Write Down The Code On The Program Using Avr Atmega2560 An Provide An Image Showing The Code With 1 (55.89 KiB) Viewed 40 times

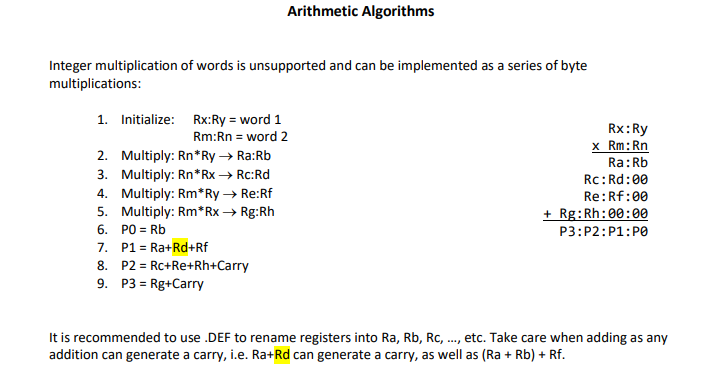

Arithmetic Algorithms Integer multiplication of words is unsupported and can be implemented as a series of byte multiplications: 1. Initialize: Rx:Ry = word 1 Rm:Rn = word 2 2. Multiply: Rn*RyRa:Rb 3. Multiply: Rn*Rx → RC:Rd 4. Multiply: Rm*Ry → Re:Rf 5. Multiply: Rm*RxRg:Rh 6. PO = Rb 7. P1 = Ra+Rd+Rf 8. P2 = Rc+Re+Rh+Carry 9. P3 = Rg+Carry Rx: Ry x Rm: Rn Ra: Rb Rc: Rd:00 Re: Rf:00 + Rg: Rh: 00:00 P3:P2:P1: PO = It is recommended to use .DEF to rename registers into Ra, Rb, RC, ..., etc. Take care when adding as any addition can generate a carry, i.e. Ra+Rd can generate a carry, as well as (Ra + Rb) + Rf.
