2. Based on the Howe roof truss illustrated below, a) draw the free body diagram of the structure. b) calculate the forc

Post by answerhappygod »

2 Based On The Howe Roof Truss Illustrated Below A Draw The Free Body Diagram Of The Structure B Calculate The Forc 1
2 Based On The Howe Roof Truss Illustrated Below A Draw The Free Body Diagram Of The Structure B Calculate The Forc 1 (134.2 KiB) Viewed 54 times

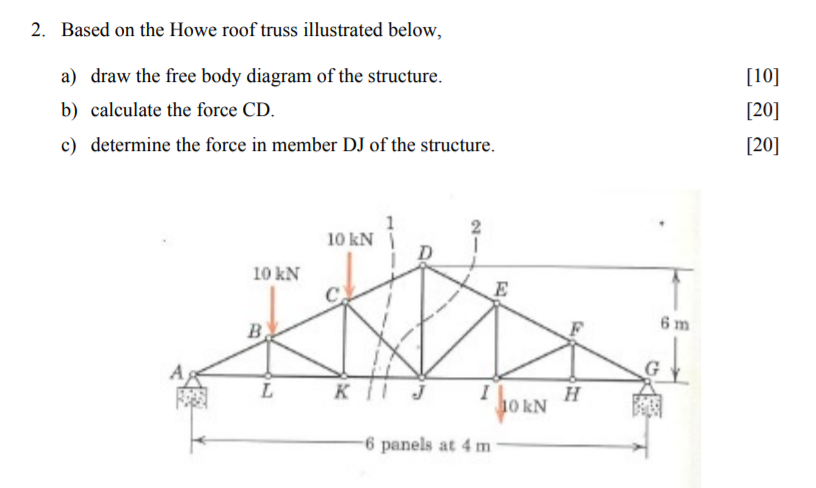

2. Based on the Howe roof truss illustrated below, a) draw the free body diagram of the structure. b) calculate the force CD. c) determine the force in member DJ of the structure. [10] [20] [20] 10 kN D 10 KN E B 6 m I K H 10 KN 6 panels at 4 m
