A rectangular, sharp crested weir with end contraction (Effective width B’= 1.6-0.2H m), where, H is head over the weir.
Posted: Fri Mar 04, 2022 9:58 am
by answerhappygod
- A Rectangular Sharp Crested Weir With End Contraction Effective Width B 1 6 0 2h M Where H Is Head Over The Weir 1 (536.25 KiB) Viewed 42 times

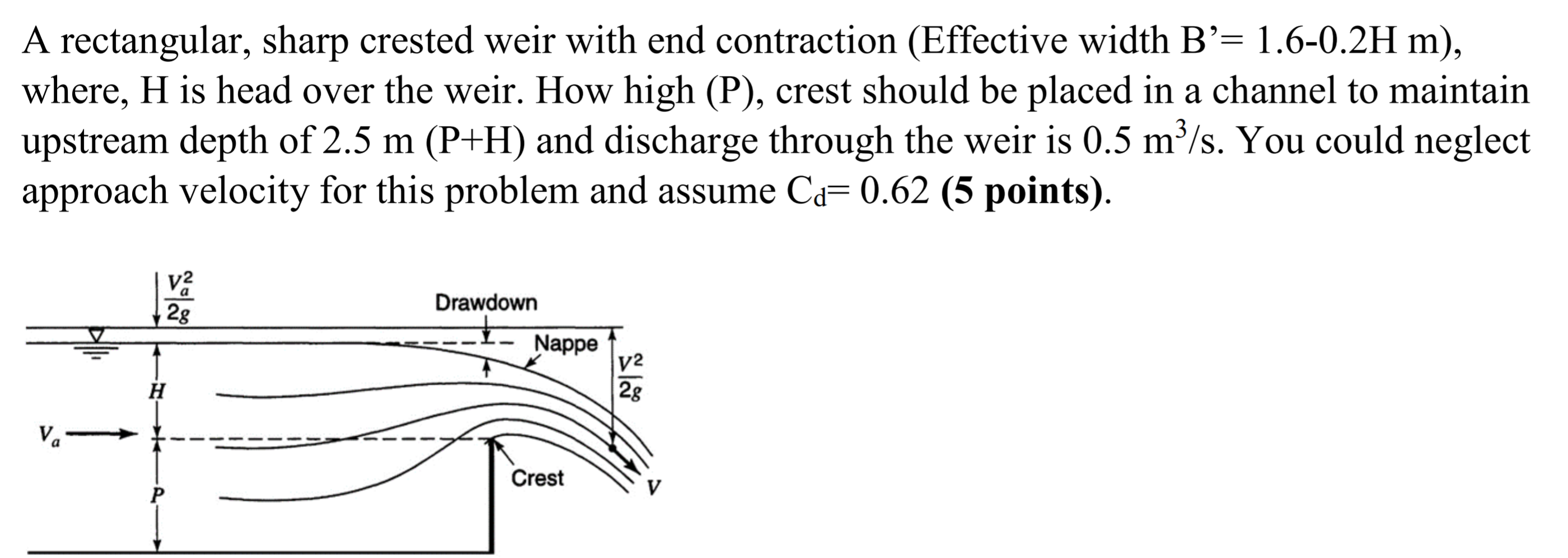

A rectangular, sharp crested weir with end contraction (Effective width B’= 1.6-0.2H m), where, H is head over the weir. How high (P), crest should be placed in a channel to maintain upstream depth of 2.5 m (P+H) and discharge through the weir is 0.5 m3/s. You could neglect approach velocity for this problem and assume Cd= 0.62 (5 points). V? a Drawdown 28 Nappe y2 H 28 Va Crest P V
