Design a Static/dynamic race free, cascaded logic CMOS stages for the following logic functions. Minimize the number of
Posted: Mon Sep 06, 2021 7:11 am
by answerhappygod
- Design A Static Dynamic Race Free Cascaded Logic Cmos Stages For The Following Logic Functions Minimize The Number Of 1 (413.76 KiB) Viewed 112 times

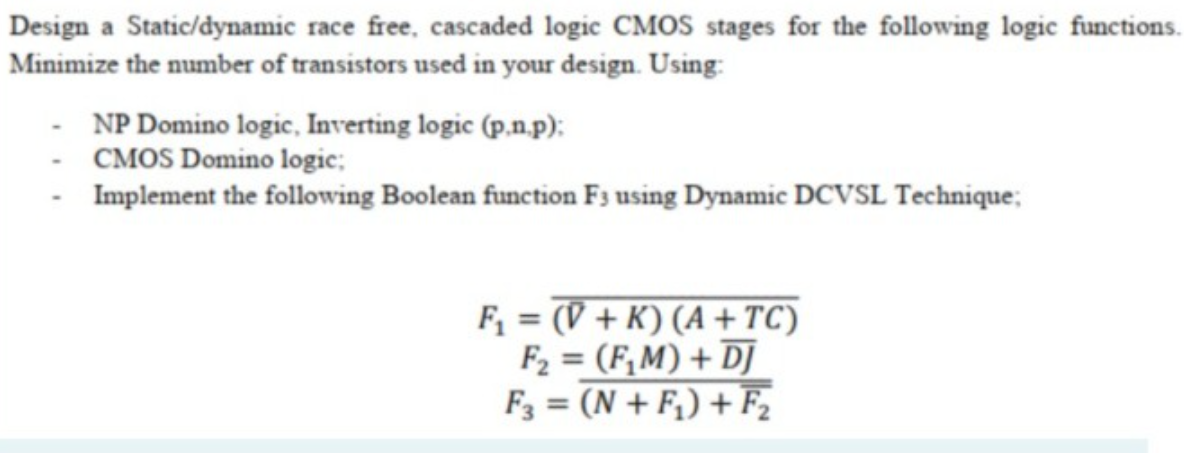

Design a Static/dynamic race free, cascaded logic CMOS stages for the following logic functions. Minimize the number of transistors used in your design. Using: - NP Domino logic, Inverting logic (p.n.p); CMOS Domino logic; - Implement the following Boolean function F; using Dynamic DCVSL Technique; F1 = (V+K) (A + TC) F2 = (FM) + DJ F3 = (N +Ft) + F2
