Problem 8: A is free, B is roller support, C is a roller rigid moment connection, and Dis a pinned support. The frame is

Post by answerhappygod »

Problem 8 A Is Free B Is Roller Support C Is A Roller Rigid Moment Connection And Dis A Pinned Support The Frame Is 1
Problem 8 A Is Free B Is Roller Support C Is A Roller Rigid Moment Connection And Dis A Pinned Support The Frame Is 1 (21.57 KiB) Viewed 61 times

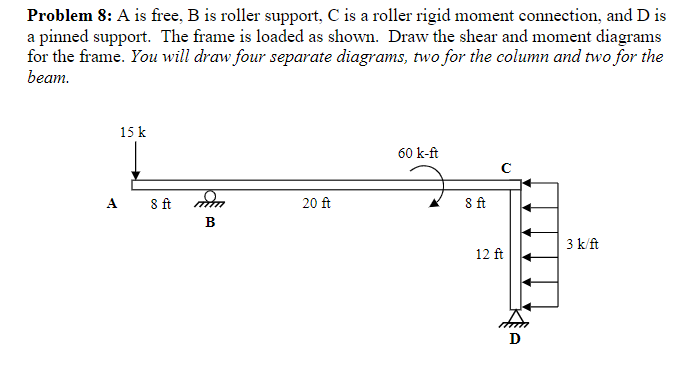

Problem 8: A is free, B is roller support, C is a roller rigid moment connection, and Dis a pinned support. The frame is loaded as shown. Draw the shear and moment diagrams for the frame. You will draw four separate diagrams, two for the column and two for the beam. 15 k 60 k-ft A st un 20 ft 8 ft B 3 k ft 12 ft
