A three phase full wave rectifier is shown below. The input line to line voltage peak value is assumed equal to 251.3 V.

Post by answerhappygod »

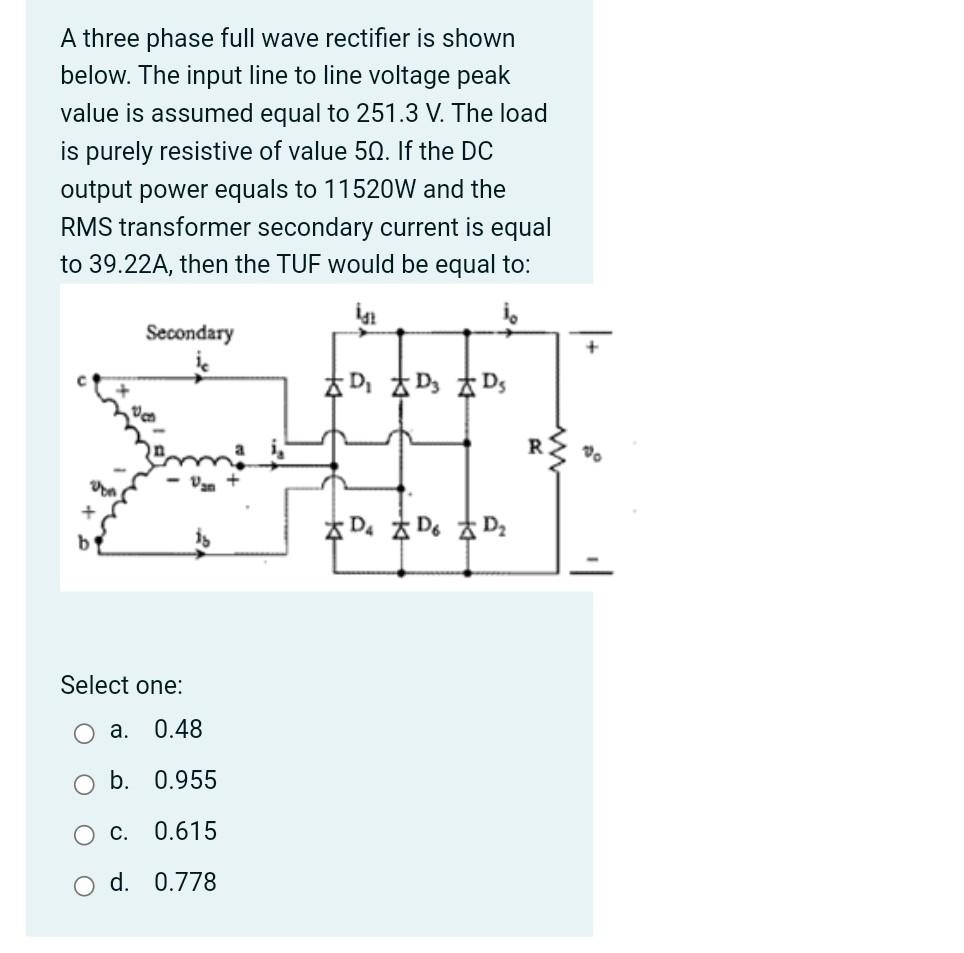

A Three Phase Full Wave Rectifier Is Shown Below The Input Line To Line Voltage Peak Value Is Assumed Equal To 251 3 V 1
A Three Phase Full Wave Rectifier Is Shown Below The Input Line To Line Voltage Peak Value Is Assumed Equal To 251 3 V 1 (63.69 KiB) Viewed 56 times
A three phase full wave rectifier is shown below. The input line to line voltage peak value is assumed equal to 251.3 V. The load is purely resistive of value 50. If the DC output power equals to 11520W and the RMS transformer secondary current is equal to 39.22A, then the TUF would be equal to: Secondary 5D & D₂ & Ds RS Do DA AD AD2 b Select one: a. 0.48 b. 0.955 c. 0.615 d. 0.778
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
