A single phase bridge rectifier supplied from a 120V - 50 Hz sinusoidal source is connected to an inductive load. The ge

Post by answerhappygod »

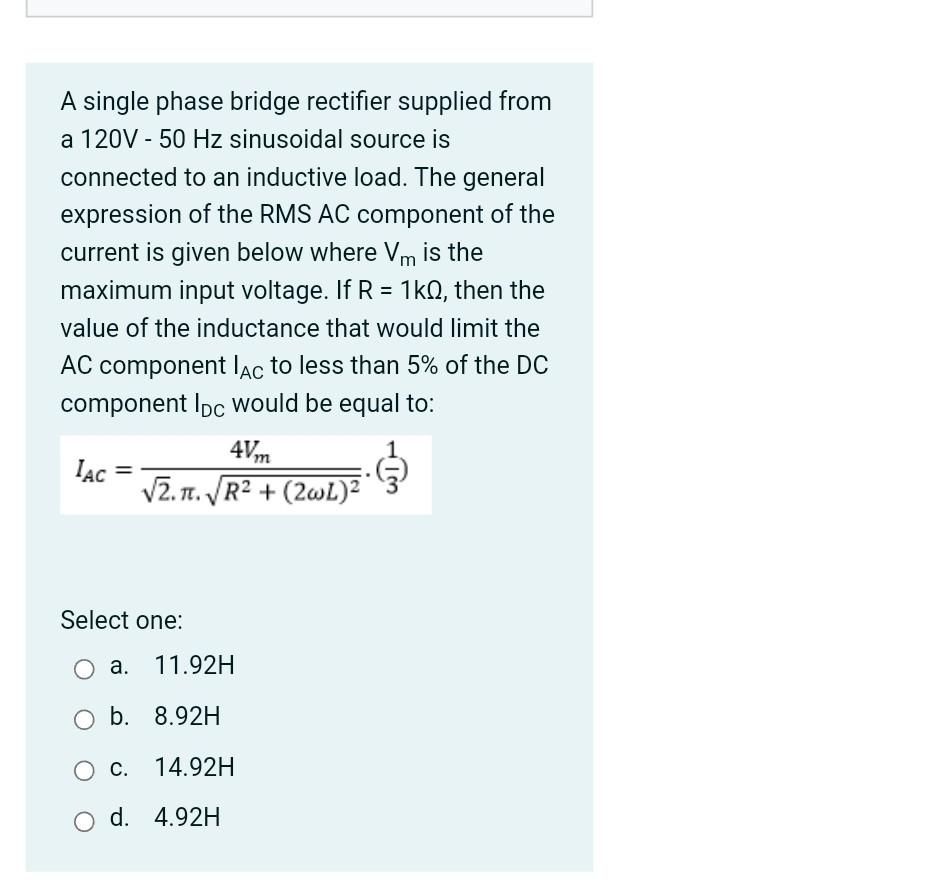

A Single Phase Bridge Rectifier Supplied From A 120v 50 Hz Sinusoidal Source Is Connected To An Inductive Load The Ge 1
A Single Phase Bridge Rectifier Supplied From A 120v 50 Hz Sinusoidal Source Is Connected To An Inductive Load The Ge 1 (62.86 KiB) Viewed 66 times
A single phase bridge rectifier supplied from a 120V - 50 Hz sinusoidal source is connected to an inductive load. The general expression of the RMS AC component of the current is given below where Vm is the maximum input voltage. If R = 1k0, then the value of the inductance that would limit the AC component lac to less than 5% of the DC component loc would be equal to: 40m IAC Ion V2.11. VR2 +(2wL)2 Select one: O a. 11.92H O b. 8.92H O c. 14.92H O d. 4.92H
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
