- The Waveforms Of A Bjt Transistor Used As A Switch Are Shown Below The Parameters Are As Follows Vcc 2000 Vce Sat 1 (181.59 KiB) Viewed 38 times
The waveforms of a BJT transistor used as a switch are shown below. The parameters are as follows: Vcc = 2000, VCE(sat)
-
answerhappygod
- Site Admin
- Posts: 899603
- Joined: Mon Aug 02, 2021 8:13 am
The waveforms of a BJT transistor used as a switch are shown below. The parameters are as follows: Vcc = 2000, VCE(sat)

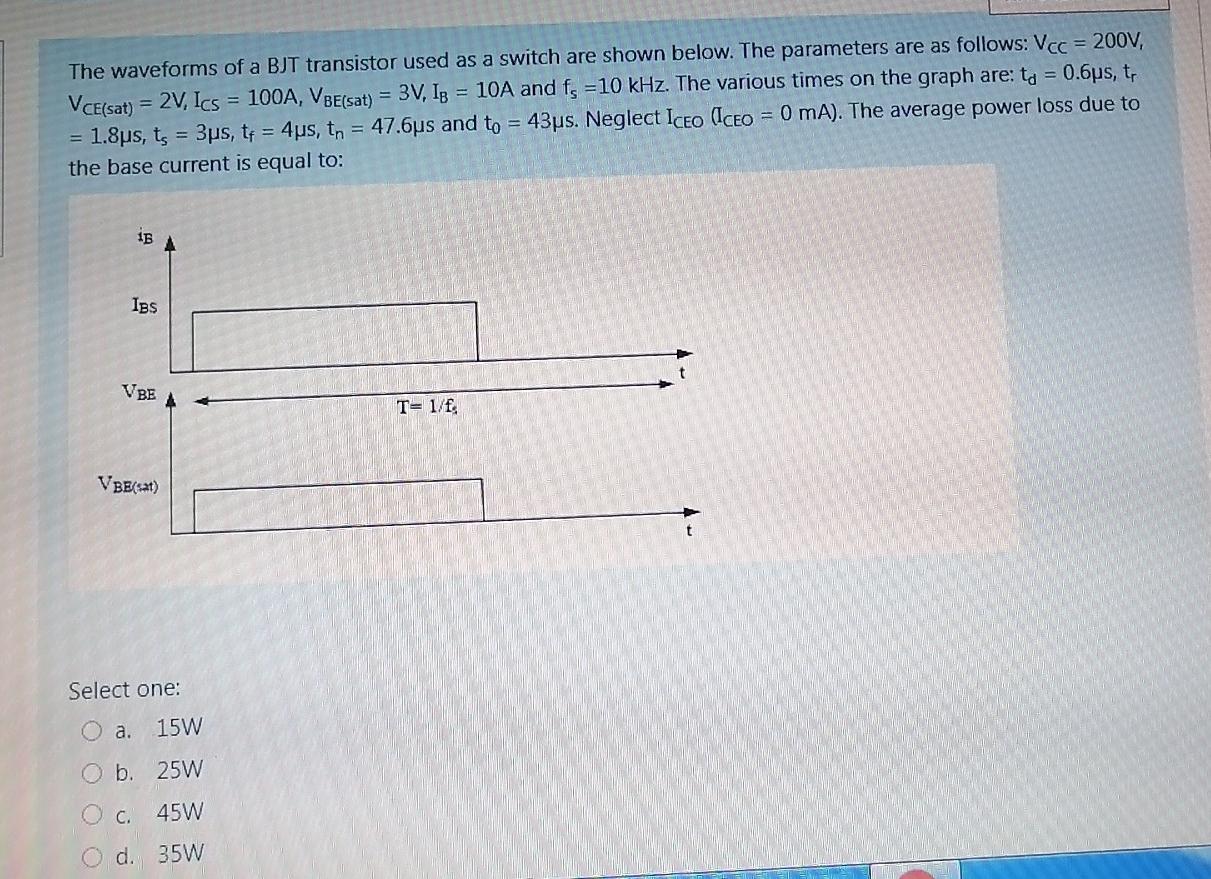

The waveforms of a BJT transistor used as a switch are shown below. The parameters are as follows: Vcc = 2000, VCE(sat) = 2V, Ics = 100A, VBE(sat) = 3V, Ig = 10A and fs =10 kHz. The various times on the graph are: t = 0.6ps, tr = 1.8us, ts = 3us, tp = 4us, tn = 47.6us and to = 43us. Neglect Iceo (CEO = 0 mA). The average power loss due to the base current is equal to: 1B IBS VBE T= 1/f VBE(521) Select one: O a. 15W O b. 25W O c. 45W O d. 35W
