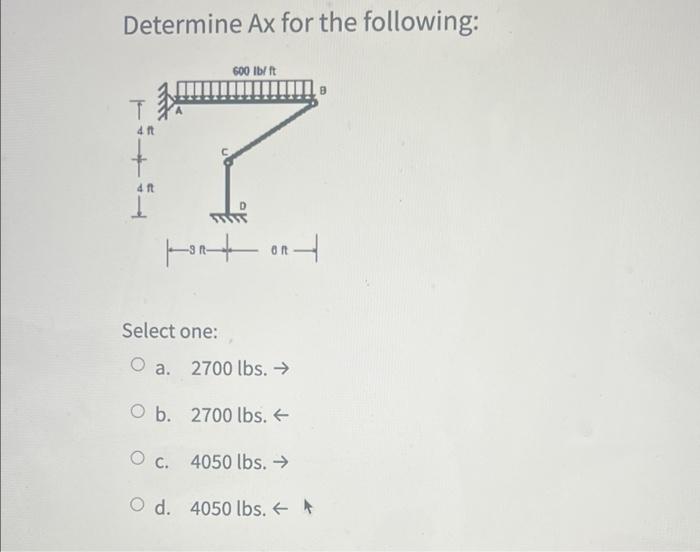

Determine Ax for the following: 600 lb/ ft T tot ond 4 ft 4 ft Select one: O a. 2700 lbs. → O b. 2700 lbs. ← O c. 4050 lbs. → O d. 4050 lbs. ←

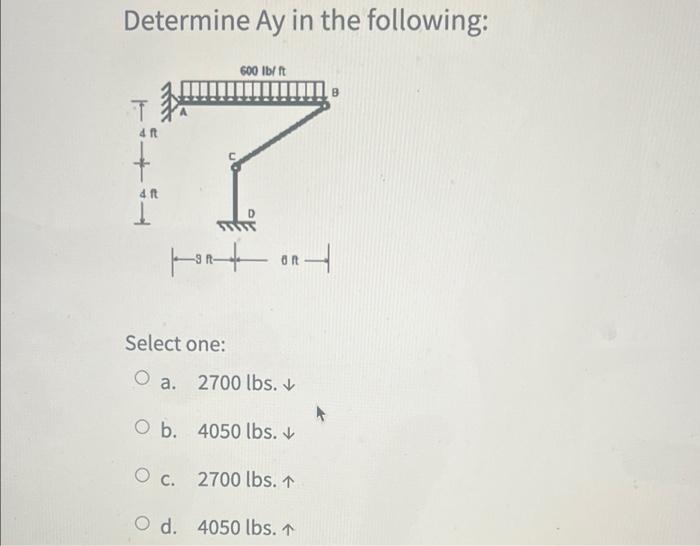

Determine Ay in the following: 600 lb/ ft TH 4 ft 7 4 ft fort ond Select one: O a. 2700 lbs. ✓ O b. 4050 lbs. O c. 2700 lbs. ↑ O d. 4050 lbs. ↑

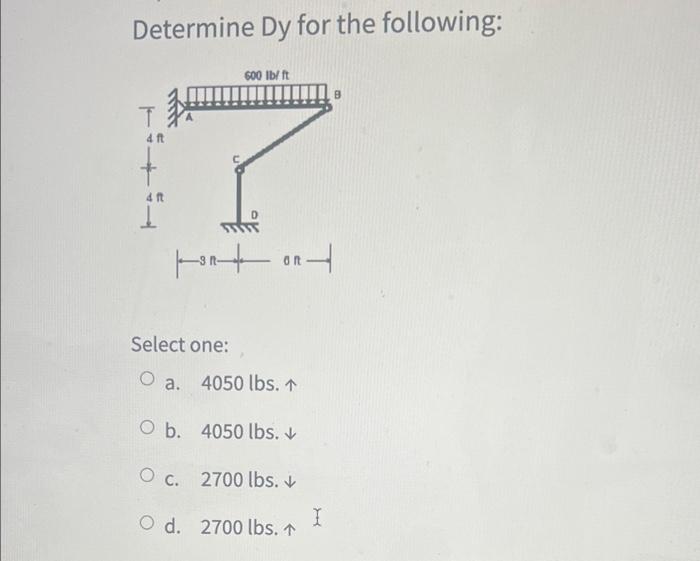

Determine Dy for the following: 600 lb/ft 4 ft 4 ft non Select one: O a. 4050 lbs. ↑ O b. 4050 lbs. ✓ O c. 2700 lbs. O d. 2700 lbs. ↑ I

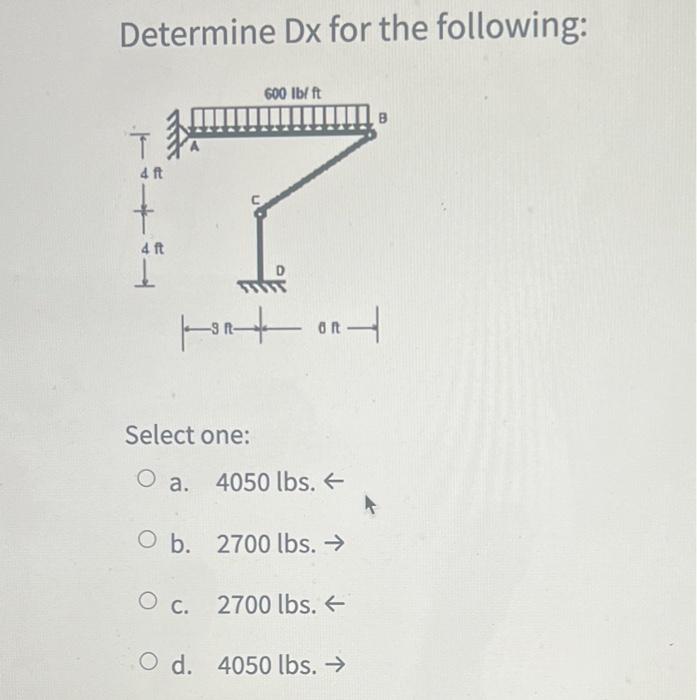

Determine Dx for the following: 600 lb/ ft B T þord ond 4 ft 4 ft 1 Select one: O a. 4050 lbs. ← O b. 2700 lbs. → O c. 2700 lbs. < Od. 4050 lbs. →
