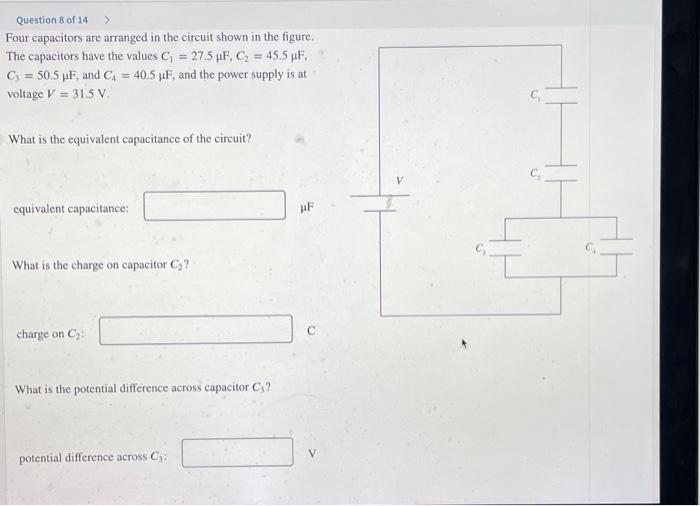

Question 8 of 14 > Four capacitors are arranged in the circuit shown in the figure. The capacitors have the values C₁ = 27.5 µF, C₂ = 45.5 µF, C₁ = 50.5 µF, and C₁ = 40.5 µF, and the power supply is at voltage V= 31.5 V. What is the equivalent capacitance of the circuit? equivalent capacitance: What is the charge on capacitor C₂? charge on C₂: What is the potential difference across capacitor C₁? potential difference across C3: HF

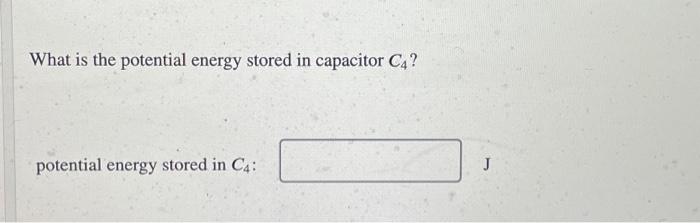

What is the potential energy stored in capacitor C4? potential energy stored in C4: J
