Ohm's Law (in electricity) states that the current (1) is proportional to the applied voltage (V). The constant of propo

[answerhappygod]

Ohm S Law In Electricity States That The Current 1 Is Proportional To The Applied Voltage V The Constant Of Propo 1 (109.14 KiB) Viewed 23 times

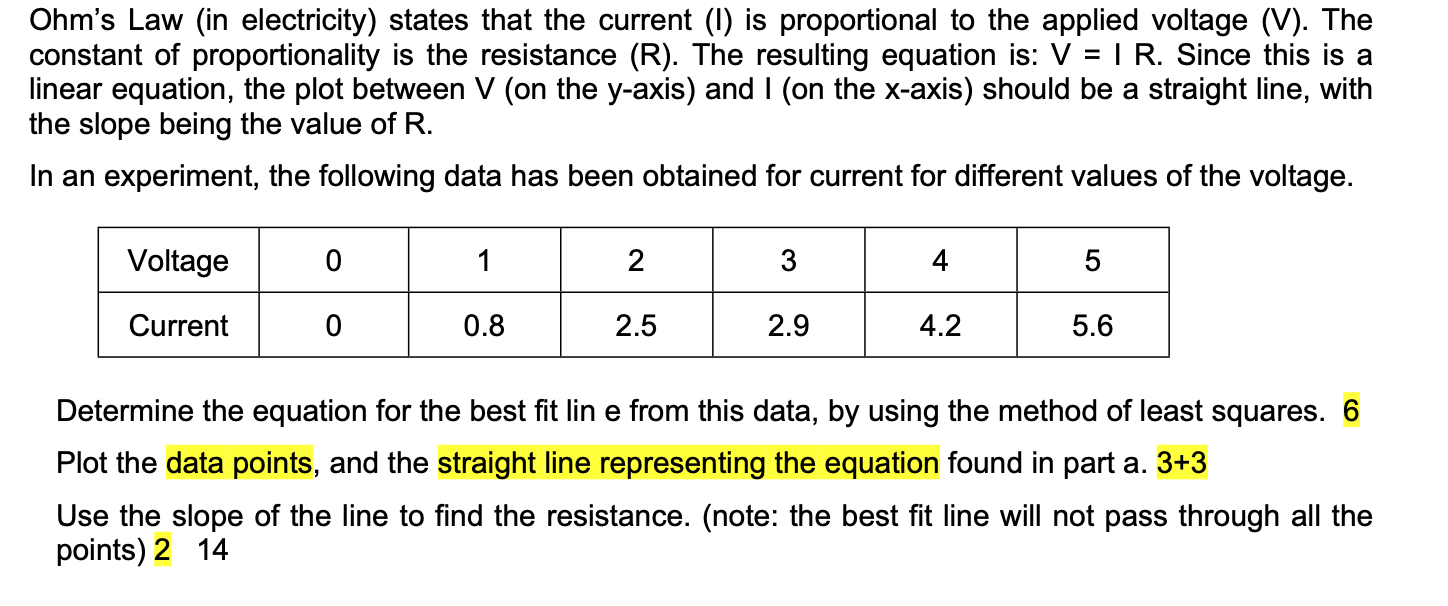

Ohm's Law (in electricity) states that the current (1) is proportional to the applied voltage (V). The constant of proportionality is the resistance (R). The resulting equation is: V = I R. Since this is a linear equation, the plot between V (on the y-axis) and I (on the x-axis) should be a straight line, with the slope being the value of R. In an experiment, the following data has been obtained for current for different values of the voltage. Voltage 0 1 2 3 4 5 Current 0 0.8 2.5 2.9 4.2 5.6 Determine the equation for the best fit lin e from this data, by using the method of least squares. 6 Plot the data points, and the straight line representing the equation found in part a. 3+3 Use the slope of the line to find the resistance. (note: the best fit line will not pass through all the points) 2 14
