= A student set up the circuit shown for her electronics class. Assuming = 7.90 V and R 5.20 , find the following quanti

[answerhappygod]

A Student Set Up The Circuit Shown For Her Electronics Class Assuming 7 90 V And R 5 20 Find The Following Quanti 1 (103.42 KiB) Viewed 41 times

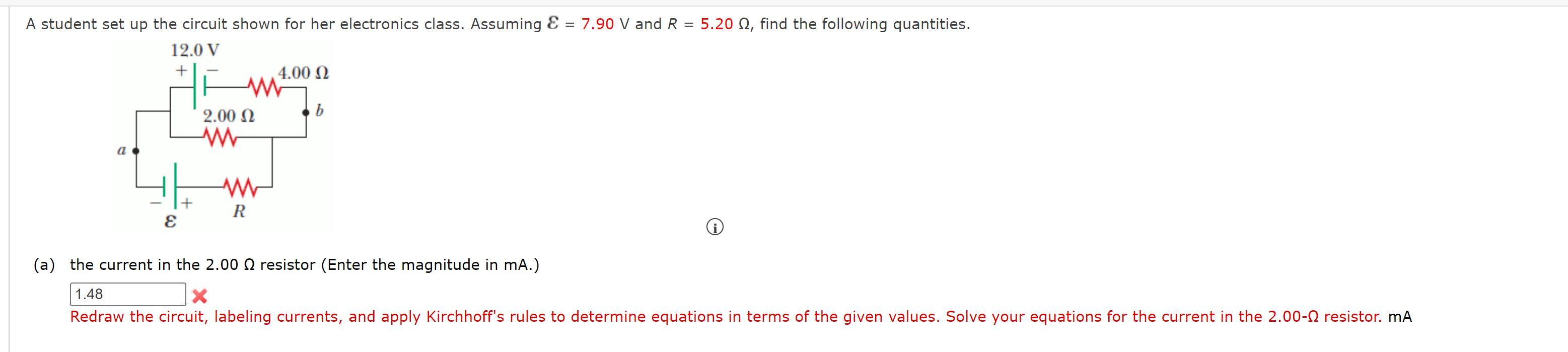

= A student set up the circuit shown for her electronics class. Assuming = 7.90 V and R 5.20 , find the following quantities. 12.0 V + 4.00 Ω a ww R E i (a) the current in the 2.00 resistor (Enter the magnitude in mA.) 1.48 X Redraw the circuit, labeling currents, and apply Kirchhoff's rules to determine equations in terms of the given values. Solve your equations for the current in the 2.00- resistor. mA + 2.00 Ω ww b
