10.14. A stirred-tank reactor is to be scaled down from 10 m² to 0.1 m². The dimensions of the large tank are: D, 2 m; D

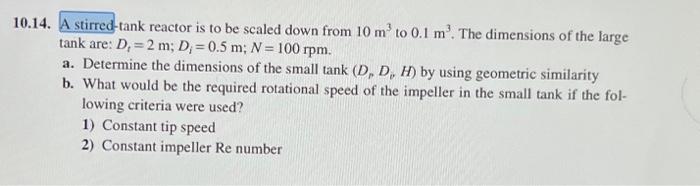

10.14. A stirred-tank reactor is to be scaled down from 10 m² to 0.1 m². The dimensions of the large tank are: D, 2 m; D; = 0.5 m; N= 100 rpm. a. Determine the dimensions of the small tank (D, D., H) by using geometric similarity b. What would be the required rotational speed of the impeller in the small tank if the fol- lowing criteria were used? 1) Constant tip speed 2) Constant impeller Re number
