Q.4) Determine the component of force F2 along the line of action of force F₁. Also find the angle between the line of a

Post by answerhappygod »

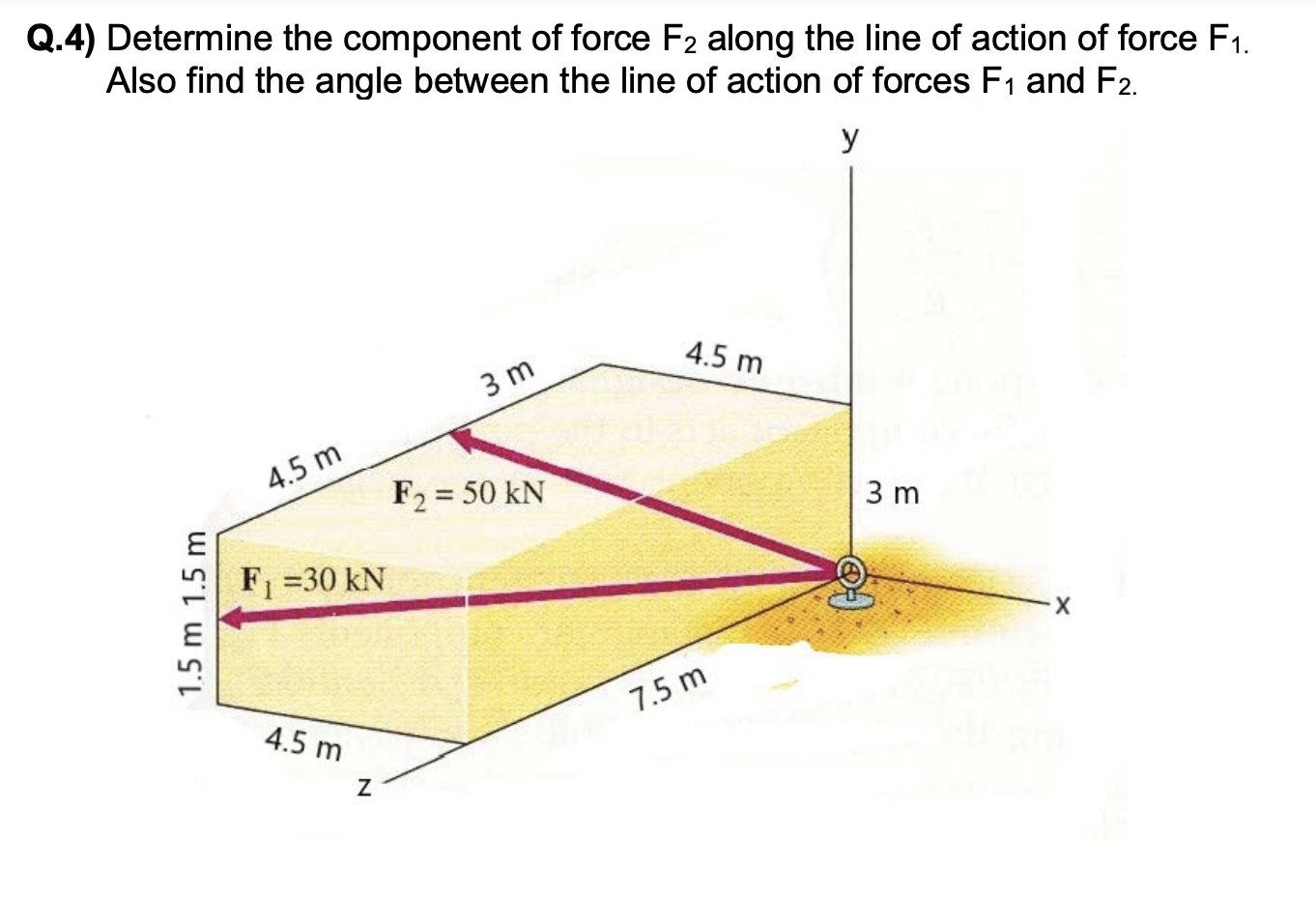

Q 4 Determine The Component Of Force F2 Along The Line Of Action Of Force F Also Find The Angle Between The Line Of A 1
Q 4 Determine The Component Of Force F2 Along The Line Of Action Of Force F Also Find The Angle Between The Line Of A 1 (668.75 KiB) Viewed 45 times
Q.4) Determine the component of force F2 along the line of action of force F₁. Also find the angle between the line of action of forces F₁ and F2. y 4.5 m 3 m 4.5 m F₁ = 30 KN 4.5 m 1.5 m 1.5 m Z F2= 50 kN 7.5 m 3 m X
