Plot (using MATLAB) or draw the time domain response of the uncontrolled open loop system response to an exponential inp

Post by answerhappygod »

Plot Using Matlab Or Draw The Time Domain Response Of The Uncontrolled Open Loop System Response To An Exponential Inp 1
Plot Using Matlab Or Draw The Time Domain Response Of The Uncontrolled Open Loop System Response To An Exponential Inp 1 (83.37 KiB) Viewed 36 times

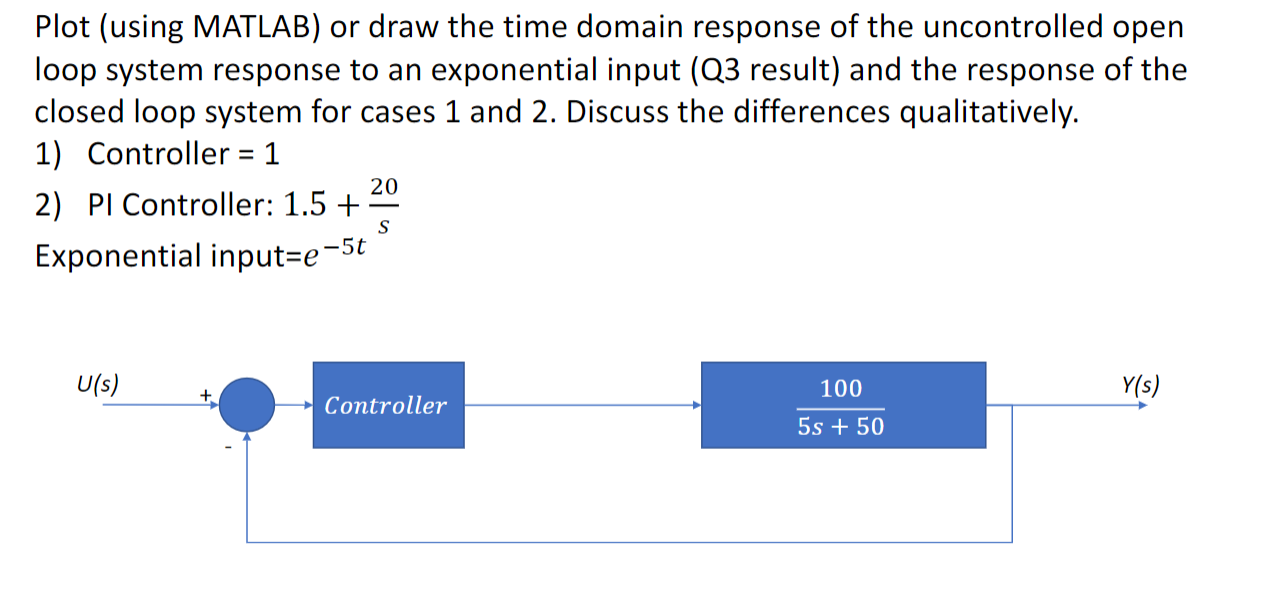

Plot (using MATLAB) or draw the time domain response of the uncontrolled open loop system response to an exponential input (Q3 result) and the response of the closed loop system for cases 1 and 2. Discuss the differences qualitatively. 1) Controller = 1 20 2) PI Controller: 1.5 + S Exponential input-e-5t U(s) Y(s) 100 5s + 50 Controller
