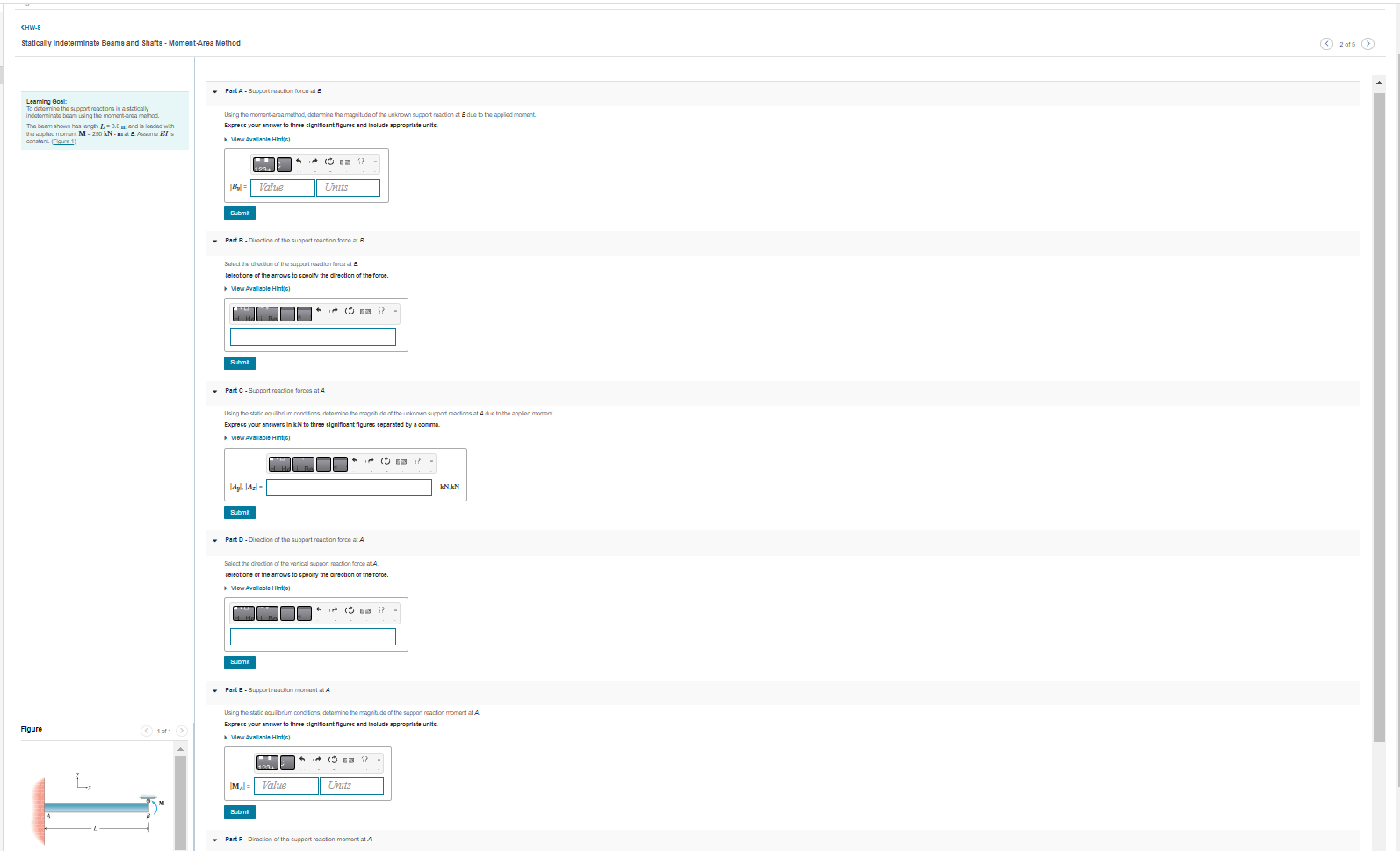

Hw 8 Statically Indeterminate Beame And Shafts Moment Area Method Learning Goal To Determine The Support Reactions In 1 (72.6 KiB) Viewed 38 times

<HW-8 Statically indeterminate Beame and Shafts - Moment-Area Method Learning Goal To determine the support reactions in a statically indeterminate beam using the moment-area method. The beam shown has length = 3.6 m and is loaded with the applied moment M = 250 kN-mat B. Assume Elis constant (Figure 1) Figure 101 > Part A-Support reaction force at B Using the moment-area method, determine the magnitude of the unknown support reaction at B due to the applied moment Express your answer to three significant figures and include appropriate units. ▸ View Available Hintc) ME B₂: Value Units Submit Part B - Direction of the support reaction force at B Select the direction of the support reaction for at B Belect one of the arrows to specify the direction of the foros. ▸ View Available Hint(c) (= 1 - Submit Part C-Support reaction forces at A Using the static equilibrium conditions, determine the magnitude of the unknown support reactions at A due to the applied moment. Express your answers in kN to three significant figurec ceperated by a comma. ▸ View Available Hint(c) (1? - |Ayl. |A₂| = Submi ▾ Part D-Direction of the support reaction force at A Select the direction of the vertical support reaction force at A Select one of the arrows to specify the direction of the force. ▸ View Available Hint(s) (1? - Submit Part E-Support reaction moment at A Using the static equilibrium conditions, determine the magnitude of the support reaction moment at A Express your answer to three significant figures and include appropriate unite ▸ View Avaliable Hint(c) M₁ Value Units Submit Part F-Direction of the support reaction moment at A kN kN ← 2015 >
