Hinge Supported Beam Is Loaded By Concentrated Forces F F 4 12 13 Given 1 1 81 12 2 81 13 1 71 F 1 5p F2 0 1 (60.55 KiB) Viewed 43 times

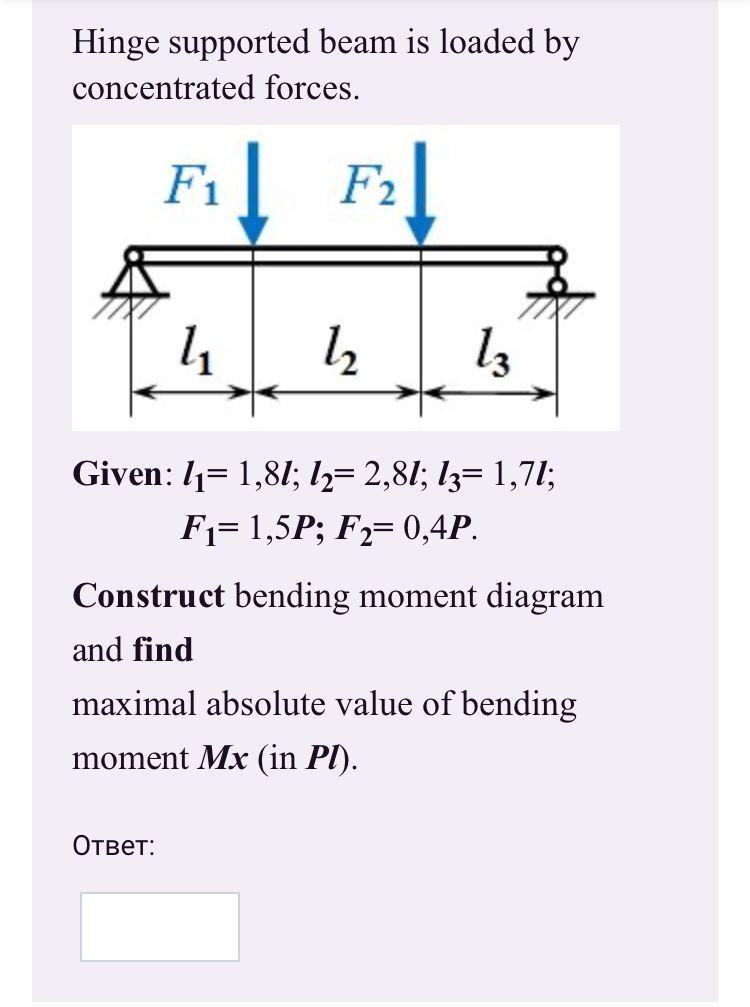

Hinge supported beam is loaded by concentrated forces. F₁ F₂ 4₁ 12 13 Given: 1₁ 1,81; 12= 2,81; 13= 1,71; F₁ 1,5P; F2= 0,4P. Construct bending moment diagram and find maximal absolute value of bending moment Mx (in Pl). Ответ:
Hinge supported beam is loaded by concentrated loads. M F₁ F2 Given: 1₁ Construct bending moment diagram and find maximal absolute value of bending moment Mx (in Pl). Ответ: 4₁ 12 13 1,21; 12= 1,7l; l3= 1,81; F₁ 1,3P; F₂= -0,3P; M= -2,4PI.
Hinge supported beam is loaded by concentrated loads. F₁ F2 F₂↓ 4₁ 1₂ 13 Given: 1₁ 1,11; 12= 2,5l; l3= 1,71; = Construct bending moment diagram and find maximal absolute value of bending moment Mx (in Pl). Ответ: M F₁ -2,5P; F2= -2,8P; M= 0,4PI.
